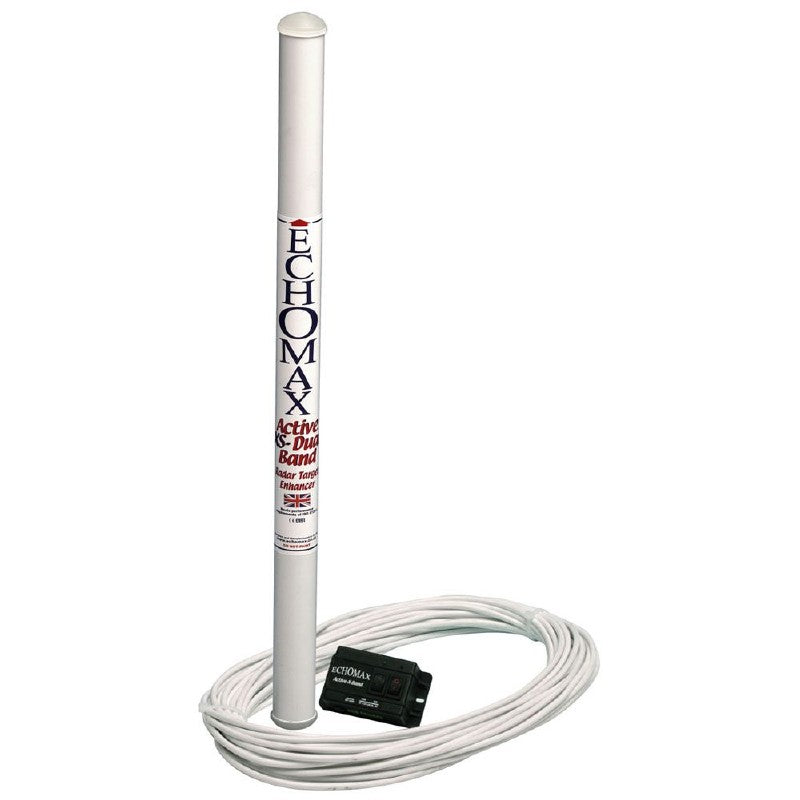

Echomax Active-XS Dual Band RTE - Radar Target Enhancer

Echomax Active ~XS Dual Band RTE ~ Radar Reflector ~ Active ~ Radar Target Enhancer
State of the Art Echomax Active ~XS ~Dual Band Radar Target Enhancer receives a signal from transmitting S or X Band Radar, amplifies and returns a stronger signal, increasing the likelihood of detection thereby reducing the risk of collision and helps to alert oncoming vessels of your position with unique identification facility to identify S or X Band Radar points. SPECIFICATION Reception frequency: X Band Radar 9.3 ~ 9.5 GHz / S Band Radar 2.9 ~ 3.1 GHz
Operating Temperature: ~20 to +60 degrees C
Voltage: 12 VDC ~ +30percent ~10percent voltage surge and cross polarity protected
Current consumption in quiescent state: <23 mA
Current consumption when transmitting typically: X Band Radar 180 mA / S Band Radar 145 mA
Position accuracy: Within 1 metre
EIRP: 1W typically
DIMENSIONS Antenna length: 685 mm
Antenna width: 40.5 mm
Antenna weight: 509 gms approximate, excluding cable
Control Box width: 92 mm
Control Box height: 51 mm
Control Box depth: 38 mm
Cable length: 24 m3 core 0.5 mm2
Cable weight: 1075 gms
STATED PERFORMANCE LEVEL SPL Exceeds ISO 8729 ~2 effective July 09 ~ X Band Radar 7.5m2 and S Band Radar 0.5m2 at Zero, +/ ~10 and 20 degrees of heel maintained over a total angle of 280 degrees. Typical performance ~ QinetiQ Funtington Anechoic Chamber March 2010 X BAND RADAR SPL ISO Standard 7.5m2
Zero degrees: 118.33m2
+/ ~10 degrees: 65.07m2
+/ ~20 degrees: 19.49m2
S BAND RADAR SPL
ISO Standard 0.5m2
Zero degrees: 6.26m2
+/ ~10 degrees: 6.44m2
+/ ~20 degrees: 5.36m2
Fitting Base fitting: female 1 inch ~ 14NF thread
Production units comply with: EN 302 752 V1.1.1. 2009 ~02
EN60945:2002Clauses 9, 10 and 12
Complies with essential requirements of R and TTE Directive 1999/5/EC.
CE0191 ~ Performance requirements of ISO 8729 ~2 X and S Band Radar.
Specifications given are subject to change without notification. CONTROL BOX Surface mount for interior installation with UNIQUE QUADRUPLE ALARM FACILITY:
1 Green Switch activates internal buzzer
2 Green LED illuminates when being painted by X or S Band Radar
3 Yellow LED illuminates when being painted by X Band Radar
4 8A Extension alarm facility when painted by S Band Radar
