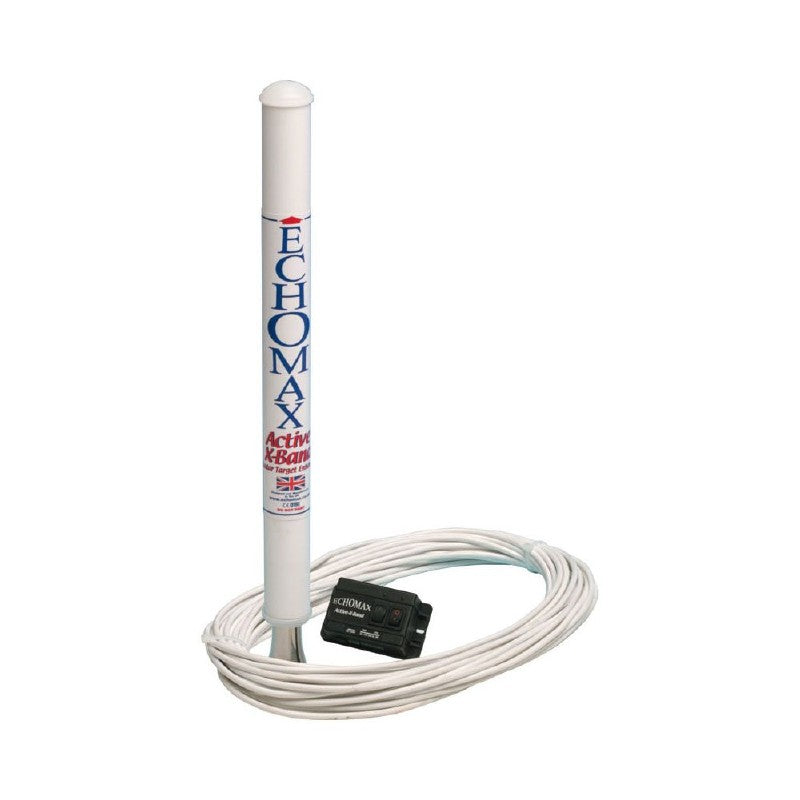

Echomax Active-X Radar Target Enhancer c/w 24m cable

Echomax Active ~X Radar Reflector
Echomax Active ~X is an active radar target enhancer that when receiving a signal from a transmitting radar, amplifiers and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert on coming vessels of your position.
Specifications:
Reception frequency: X band 9.3 ~ 9.5GHz
Operating Temp: ~20 to 60 degrees C
Voltage: 12V DC ~ +30percent/ ~10percent voltage surge and cross polarity protected
Stand by current consumption: 15mA
Position Accuracy: within 1 metre
Typical 24 hour period e. g 5 radar in the area: 0.55Ah, 10 radar in the area: 0.75Ah
EIRP: 1W
PERFORMANCE RESPONSE ~ Stated Performance Level
Zero degrees 111.36M2
+/ ~10 degrees of heel 78.96M2
+/ ~20 degrees of heel 20.80M2
source QinetiQ Anechoic Chamber Funtington 13th March 09 Exceeds ISO 8729 ~2 effective 22nd July 09 performance requirements 7.5M2 at 10 degrees of heel for motor vessels and 20 degrees of heel for sailing vessels
DIMENSIONS
Length TBA width 40.5mm
Weight 390 gms excluding cable
Cable length 25M 2 core 0.5mm2
CONTROL BOX for interior installation, surface mount with optional base or rear entry cable facility Red LED to indicate power on Green LED to indicate being painted by radar
Externally accessible fuse
Dual alarm with ON/OFF facility with internal buzzer AND Volt free relay contact for switching up to 8A to control vessels deck horn, klaxon or deck light
FITTING
Base fitting: female 1 inch ~ 14NF recommended fitting is as high as possible with 360 degree clear azimuth
Complies with IEC945: CE0191:EN302752 Awaiting confirmation Performance requirements of ISO8729 ~2 X band
