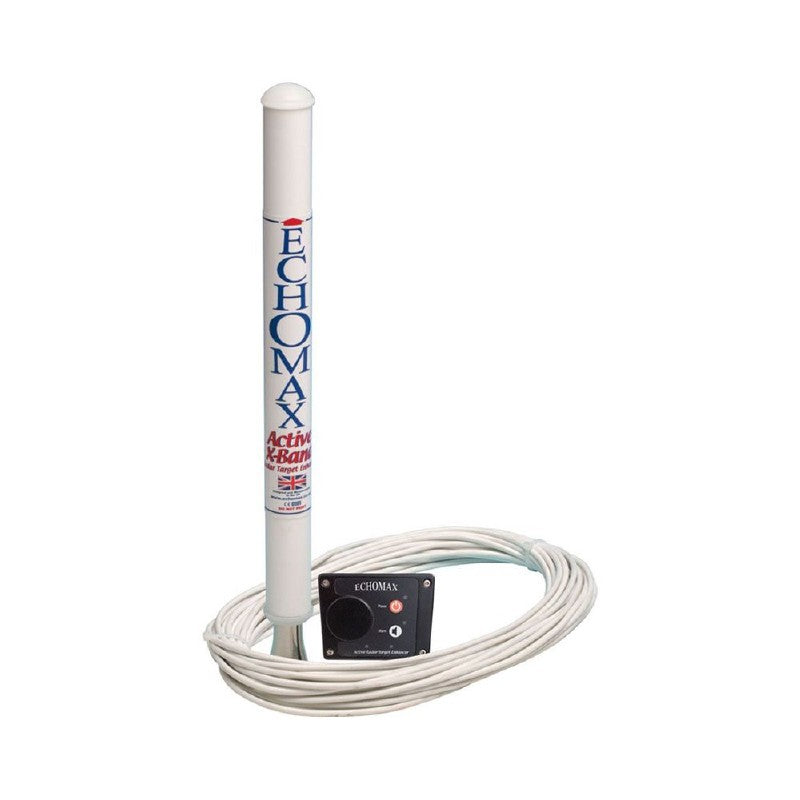

Echomax Active-X Radar Reflector with Waterproof Control Box c/w 24m Cable

State of the art Echomax Active ~X ~Band Radar Target Enhancer receives a signal from transmitting radar, amplifies and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position.
Specification
Reception frequency: X band 9.32 – 9.5 GHz
Operating Temperature: ~20 to +60 degrees C
Voltage: 12V DC ~ +30percent ~10percent voltage surge and cross polarity protected
Stand by current consumption: 15mA
Position accuracy: Within 1 metre
5 interrogating radar 23mA
10 32mA
EIRP: 1W
Performance Response
Zero degrees: 111.36M2
+/ ~10 degrees of heel: 78.96M2
+/ ~20 degrees of heel: 20.80M2
Stated Performance Level ~ QinetiQ ~ 13th March 09
Exceeds ISO 8729 ~2 effective 22nd July 09 X Band performance requirements 7.5M2 at +/ ~10 degrees of heel for motor vessels and +/ ~20 degrees of heel for sailing vessels.
Width 104mm overall width with flange mount 124mm height 114mm depth 40mm
Supplied with New Water proof control box for RIBS, small sail boats or remote cockpit use. Can be wired along with standard control box to give cockpit dual station facilities and control. Three LED lights and switches offering you both visual and audible alarm facilities 24 hours a day. Dual external wiring option from base or rear. Waterproof to IP65.
