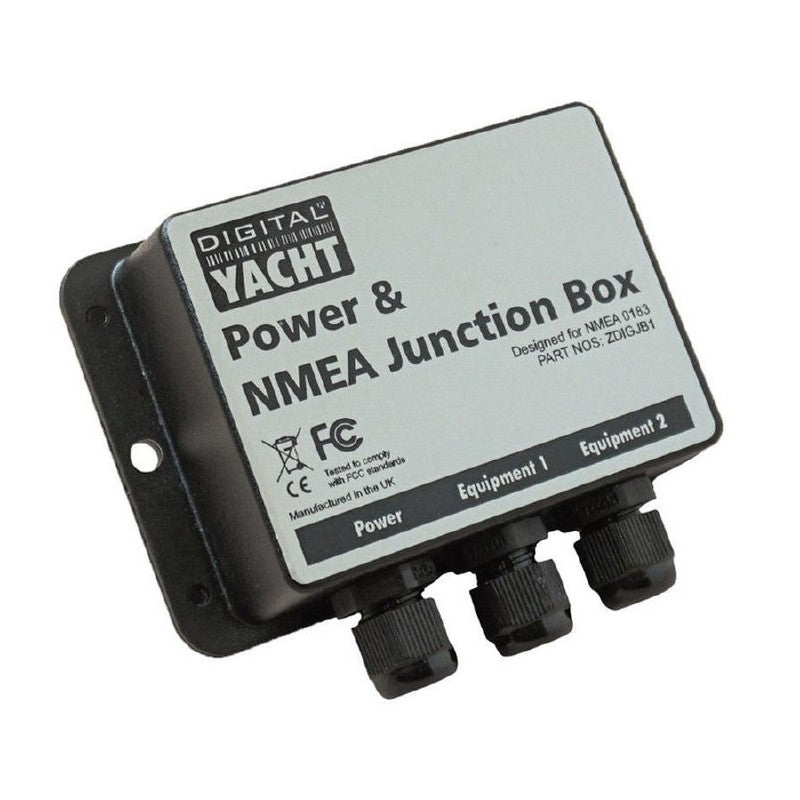

Digital Yacht JB1 NMEA0183 and Power Junction Box
The JB1 is a simple way to interconnect NMEA 0183 products and ideal for DIY installation.
Lots of systems still use NMEA 0183 for connectivity. It’s a simple two wire system but there’s
no standard colour codes or connector type. This means installers need to design their own solution.
NMEA devices that transmit data are called talkers and they connect to devices that receive data
listeners. In other words, NMEA OUT goes to NMEA IN. With a plus and minus polarity for NMEA data,
it involves two wires and while a talker can broadcast to multiple listeners typically up to 5 devices,
two talkers can’t connect together without using a specialist multiplexer.
A typical installation would be connecting an AIS transponder to a plotter. The NMEA out from the
AIS would connect to the NMEA input on the plotter. If you need to add wifi connectivity for an iPad
or tablet, then our WLN10SM could also connect to the NMEA output of the AIS.
Some devices may have multiple NMEA outputs. One at 4800 baud for traditional instruments and
one at 38400 baud for AIS. These both require their own dedicated wiring.
The new JB1 junction box from Digital Yacht is a simple, easy to install solution for NMEA 0183 and
power connections. It uses a patented spring lock terminal system from Wago. This allows various
sized cables to be connected and joined in seconds.
The internal connections use a patented Wago system. The two way joining blocks measure just
12 x 18mm and this can be removed to aid inserting thin and fiddly cables. Open the lever,
insert the cable and snap shut for a reliable insulated connection.
Easy solution for NMEA 0183 and 12/24V DC power connectivity
Compact, waterproof junction box measures just 105 x 70 x 35mm
Three inlet glands you can add more glands if you require.
Supplied with two x 3 way Wago junction blocks recommended for positive and negative power
connections and six x 2 way recommended for NMEA
Simply lift lever and insert cables into the block and snap shut for reliable connections
Accepts cable from 0.25mm to 4mm you can also twist smaller cables together
Wago connectors mount onto internal base using supplied velcro pads allowing connections
to be easily completed and then fixed in place before assembly of the case
Can make the device waterproof to IPX6
Includes 1m power input cable 5A
Lots of systems still use NMEA 0183 for connectivity. It’s a simple two wire system but there’s
no standard colour codes or connector type. This means installers need to design their own solution.
NMEA devices that transmit data are called talkers and they connect to devices that receive data
listeners. In other words, NMEA OUT goes to NMEA IN. With a plus and minus polarity for NMEA data,
it involves two wires and while a talker can broadcast to multiple listeners typically up to 5 devices,
two talkers can’t connect together without using a specialist multiplexer.
A typical installation would be connecting an AIS transponder to a plotter. The NMEA out from the
AIS would connect to the NMEA input on the plotter. If you need to add wifi connectivity for an iPad
or tablet, then our WLN10SM could also connect to the NMEA output of the AIS.
Some devices may have multiple NMEA outputs. One at 4800 baud for traditional instruments and
one at 38400 baud for AIS. These both require their own dedicated wiring.
The new JB1 junction box from Digital Yacht is a simple, easy to install solution for NMEA 0183 and
power connections. It uses a patented spring lock terminal system from Wago. This allows various
sized cables to be connected and joined in seconds.
The internal connections use a patented Wago system. The two way joining blocks measure just
12 x 18mm and this can be removed to aid inserting thin and fiddly cables. Open the lever,
insert the cable and snap shut for a reliable insulated connection.
Easy solution for NMEA 0183 and 12/24V DC power connectivity
Compact, waterproof junction box measures just 105 x 70 x 35mm
Three inlet glands you can add more glands if you require.
Supplied with two x 3 way Wago junction blocks recommended for positive and negative power
connections and six x 2 way recommended for NMEA
Simply lift lever and insert cables into the block and snap shut for reliable connections
Accepts cable from 0.25mm to 4mm you can also twist smaller cables together
Wago connectors mount onto internal base using supplied velcro pads allowing connections
to be easily completed and then fixed in place before assembly of the case
Can make the device waterproof to IPX6
Includes 1m power input cable 5A
Digital Yacht JB1 NMEA0183 and Power Junction Box
Our price£36.00
