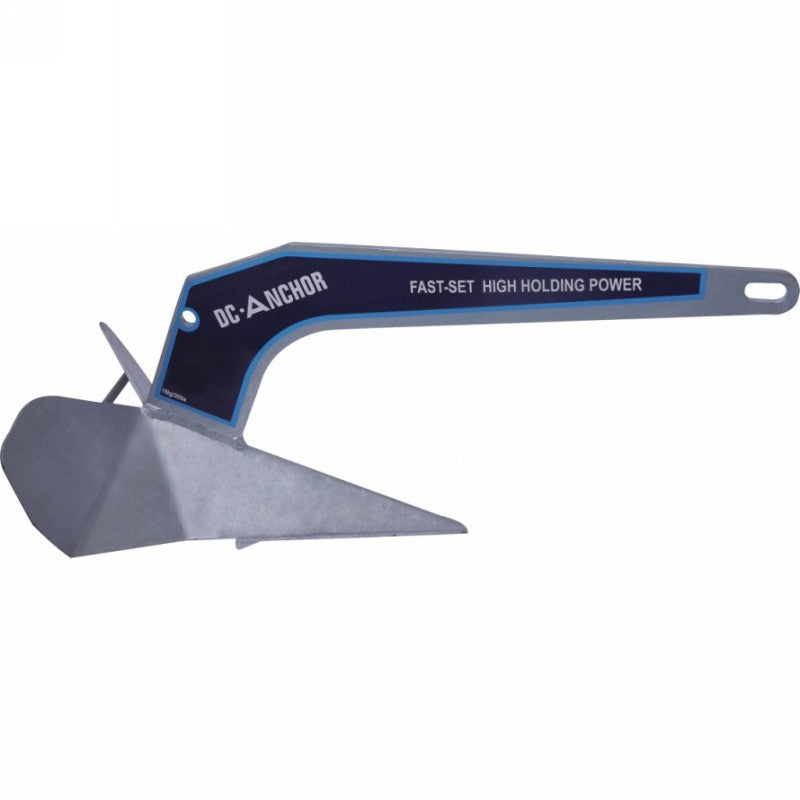

DC Plough Anchor 10Kg Galvanised

DC Plough anchor with high holding power.
The shaft shape and broad ~shoulder flukes combined with a weighted tip contribute to a low gravity point,
providing self launching performance and instant setting.
Adapts naturally to a bow roller.

LLOYD'S REGISTER APPROVED

Features:
High Holding Power
Fast Setting
Hot Dipped Galvanised
Self Launching
Smooth setting into bow roller
Fits into the same bow rollers as Delta Anchors

Model Specifications:

4Kg ~ Overall Length 514mm Overall Width 230mm For Boat Length 6 ~9m
6Kg ~ Overall Length 593mm Overall Width 265mm For Boat Length 9 ~12m
10Kg ~ Overall Length 695mm Overall Width 310mm For Boat Length 12 ~15m
16Kg ~ Overall Length 812mm Overall Width 362mm For Boat Length 15 ~18m
20Kg ~ Overall Length 877mm Overall Width 392mm For Boat Length 18 ~20m
25Kg ~ Overall Length 945mm Overall Width 415mm For Boat Length 20 ~21m

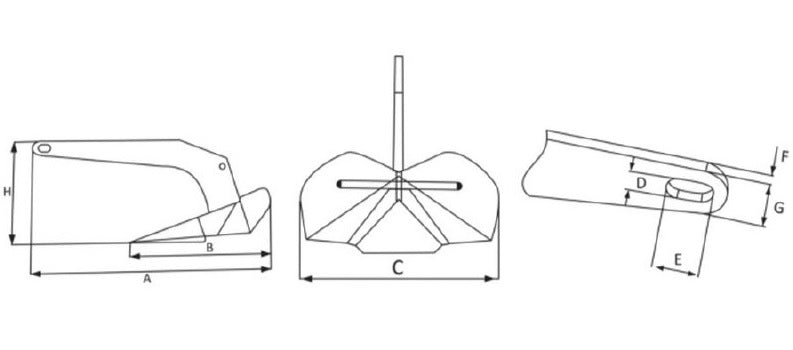

Full Specifications

Weight A B C D E F G H
4kg 514 mm 303 mm 230 mm 16 mm 35 mm 8 ± 0,35 mm 32 mm 217 mm
6kg 593 mm 350 mm 265 mm 16 mm 35 mm 10 ± 0,4 mm 32 mm 254 mm
10kg 695 mm 410 mm 310 mm 19 mm 42 mm 12, 1 ~ 13,5mm 38 mm 293 mm
16kg 812 mm 482 mm 351 mm 19 mm 42 mm 12,1 ~ 13,5 mm 44 mm 339 mm
20kg 877 mm 518 mm 392 mm 24 mm 48 mm 16 ± 0,4 mm 48 mm 370 mm
25kg 945 mm 558 mm 415 mm 24 mm 48 mm 16 ± 0,4 mm 52 mm 397 mm
