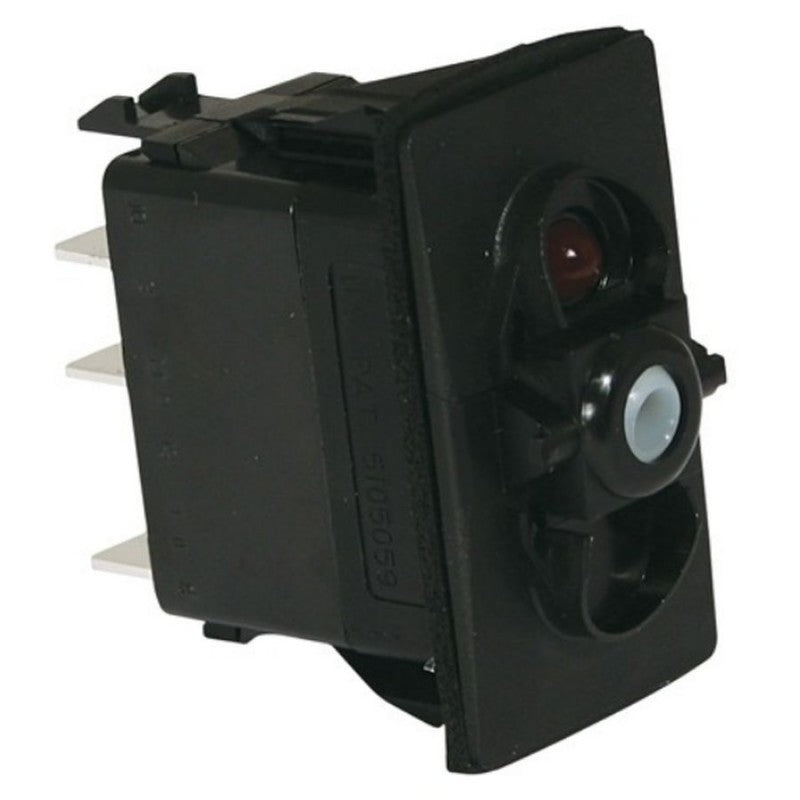

Carling Switch Contura II Series 12/24v Illuminated Off-On Red

Description: Aesthetics play a major role when choosing switches. The Contura II series with its unique features provides a new look for the switch market. Sealed to an IP68 rating.

Lens legend Actuators are used to identify the switch function ~ please select requirements from the options list. You will need one Actuator for every switch.

Please note: We recommend the use of switch holder, however any of the switches can be panel mounted without the use of a holder when the hole is exactly cut to 21.08 x 36.83mm

Technical Data Description Technical Data
Current Ratings: Up to 20 amps at 12VDC
Dielectric Strength: 2000V RMS
Insulation Resistance: 50m
Base Material: Polyester
Actuator Material: Polycarbonate
Bkt/Bezel Material: Nylon
Sealing: Certified to IP68, dust tight and resistant to the prolonged effects of water under pressure front panel components. Test calls for submersion at 1 metre for over 30 minutes

Choice of Red or Blue LED Back Light
Action: Options available: M = momentary
off ~on
off ~ M on
on ~on
on ~off ~on
M on ~ off ~ M on
on ~on ~on
on ~off ~ M on

Note: Switch only ~ you will need to purchase an appropriate Actuator
