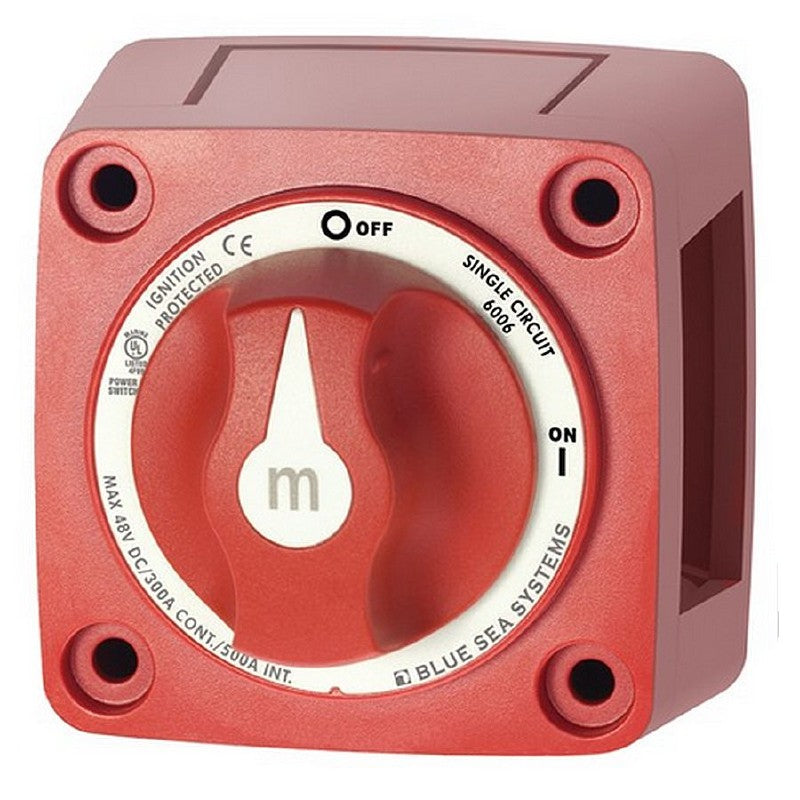

Blue Sea Switch Battery Mini ON/OFF With Knob 300A - 6006
Ignition protected ~ safe for installation aboard gasoline powered boats Case design allows surface, front panel, or rear panel mounting Isolating cover with snap ~on sections protects rear contacts Specifications
Switch Type Single Circuit ON ~OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running. if the AFD is not used to protect the alternator, an LED can be connected to the AFD terminals to indicate when the battery switch is in any position but OFF. No
Maximum Voltage 48V DC
Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 300A
Intermittent Rating The maximum amount of current a switch is designed to carry for a minimum of a designated period of time. 500A 5 min Cranking Rating 10 sec Normally associated with cranking current which is the current required by the starter circuit prior to engine starting. The cranking current varies significantly during the starting cycle. Initially, there is a large surge of current required to overcome the inertia and compression of the engine. This surge can be two to four times the average cranking current. Once the engine is turning there are peaks and valleys as the pistons go through the compression and exhaust cycles. The cranking current rating is used for sizing batteries, cables, and battery switches. 1500A
Cranking Rating 1 min The maximum amount of current a switch is designed to carry when starting an engine when the cranking period does not exceed 1 minute. 775A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in 28.45 mm
Cable Size to Meet Ratings 4/0 AWG 120mm
Mounting Holes Accept No.10 Screw
Terminal Stud Size 3/8 inch ~16 M10
Terminal Stud Torque 120 in ~lb 13.56 Nm
Weight 0.65lb 0.29 kg
Switch Type Single Circuit ON ~OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running. if the AFD is not used to protect the alternator, an LED can be connected to the AFD terminals to indicate when the battery switch is in any position but OFF. No
Maximum Voltage 48V DC
Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 300A
Intermittent Rating The maximum amount of current a switch is designed to carry for a minimum of a designated period of time. 500A 5 min Cranking Rating 10 sec Normally associated with cranking current which is the current required by the starter circuit prior to engine starting. The cranking current varies significantly during the starting cycle. Initially, there is a large surge of current required to overcome the inertia and compression of the engine. This surge can be two to four times the average cranking current. Once the engine is turning there are peaks and valleys as the pistons go through the compression and exhaust cycles. The cranking current rating is used for sizing batteries, cables, and battery switches. 1500A
Cranking Rating 1 min The maximum amount of current a switch is designed to carry when starting an engine when the cranking period does not exceed 1 minute. 775A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in 28.45 mm
Cable Size to Meet Ratings 4/0 AWG 120mm
Mounting Holes Accept No.10 Screw
Terminal Stud Size 3/8 inch ~16 M10
Terminal Stud Torque 120 in ~lb 13.56 Nm
Weight 0.65lb 0.29 kg
Blue Sea Switch Battery Mini ON/OFF With Knob 300A - 6006
Our price£33.96
RRP£45.28
