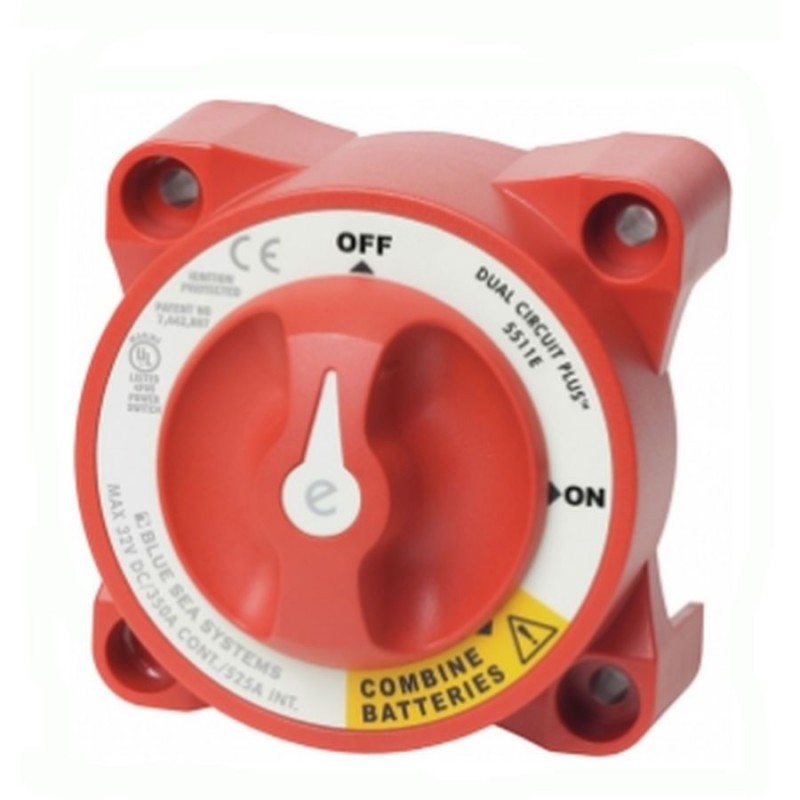

Blue Sea Switch Battery e-Series Dual Circuit Plus 5511E

Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make ~before ~break contact design allows switching between battery banks without power interruption
Ignition protected ~ safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
Switch Type Dual Circuit Plus
Color Red
Switch Positions 3
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Continuous Rating 350A
Intermittent Rating 525A 5 min
Cranking Rating 10 sec 1000A
Cranking Rating 1 min 750A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in 27.94 mm
Cable Size to Meet Ratings 4/0 AWG 120mm
Mounting Holes Accept 1/4 M6 Screw
Terminal Stud Size 3/8 ~16 M10
Terminal Stud Torque 140 in ~lb 15.82 Nm
Weight 1.30lb 0.59 kg
