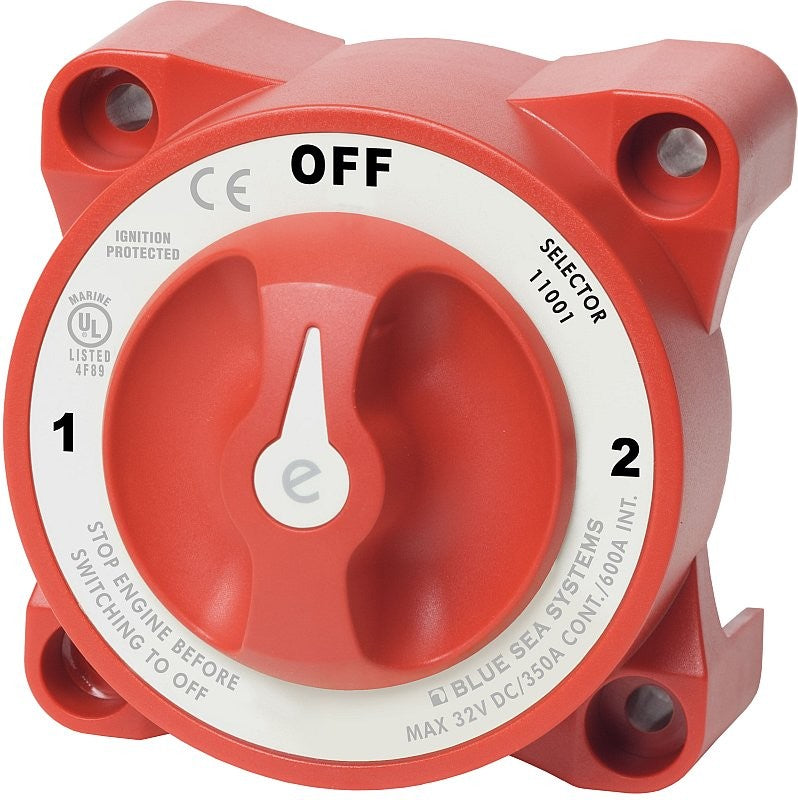

Blue Sea E-Series Battery Selector 3 Position Battery Switch 11001

Switches a single battery to a single load group
Includes AFD Alternator Field Disconnect
Ignition protected safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Specifications
Switch Type Selector 3 Position
Color Red
Switch Positions 3
Battery Combine No
Alternator Field Disconnect Alternator Field Disconnect protects the diodes in the alternator in the event of the switch being switched to the OFF position while the engine is running. if the AFD is not used to protect the alternator, an LED can be connected to the AFD terminals to indicate when the battery switch is in any position but OFF. Yes
Maximum Voltage 32V DC
Continuous Rating The maximum current a switch is designed to conduct for an indefinite period. 350A
Intermittent Rating The maximum amount of current a switch is designed to carry for a minimum of a designated period of time. 600A 5 min
Cranking Rating 10 sec Normally associated with cranking current which is the current required by the starter circuit prior to engine starting. The cranking current varies significantly during the starting cycle. Initially, there is a large surge of current required to overcome the inertia and compression of the engine. This surge can be two to four times the average cranking current. Once the engine is turning there are peaks and valleys as the pistons go through the compression and exhaust cycles. The cranking current rating is used for sizing batteries, cables, and battery switches. 2000A
Cranking Rating 1 min The maximum amount of current a switch is designed to carry when starting an engine when the cranking period does not exceed 1 minute. 1000A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in 27.94 mm
Cable Size to Meet Ratings 4/0 AWG 120mm sq.
Mounting Holes Accept 1/4 inch M6 Screw
Terminal Stud Size 3/8 inch ~16 M10
Terminal Stud Torque 140 in ~lb 15.82 Nm
Weight 1.30lb 0.59 kg
