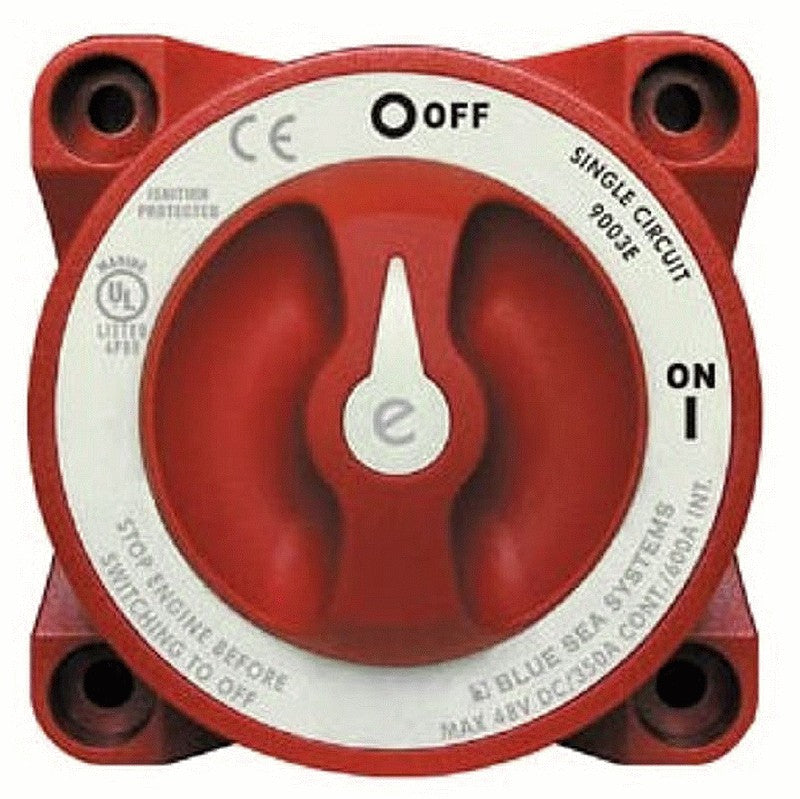

Blue Sea Battery Switch 9003E On/Off 350A

E ~SERIES BATTERY SWITCH
350 Ampere continuous rating for inboard gasoline and diesel engines.
Tin ~plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8 inch M10 ring terminals
7/8 inch 22mm stud length accepts multiple cable terminals
One ~piece terminal stud design never loosens over time
Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel
Specifications:
Terminal Stud Size: 3/8 inch 16 M10
Terminal Stud Torque: 140 in ~lbs
Mounting Holes: Accepts M6 screw
Cable Size to Meet Ratings: 4/0 AWG 95mm2
Cable Clearance: 1.10 inch 28mm

Brand Blue Sea Systems
Voltage 48V DC Maximum
Amps Continuous: 350A, Intermittent 5 minutes: 600A, Cranking 10 seconds: 2000A
Approvals CE marked, ISO 8846, UL Listed UL 1107 electric power switches, Meets ABYC
requirements, Meets UL1500 and SAE J1171 external ignition protection requirements
Protection Rating IP66 protects against powerful water jets
