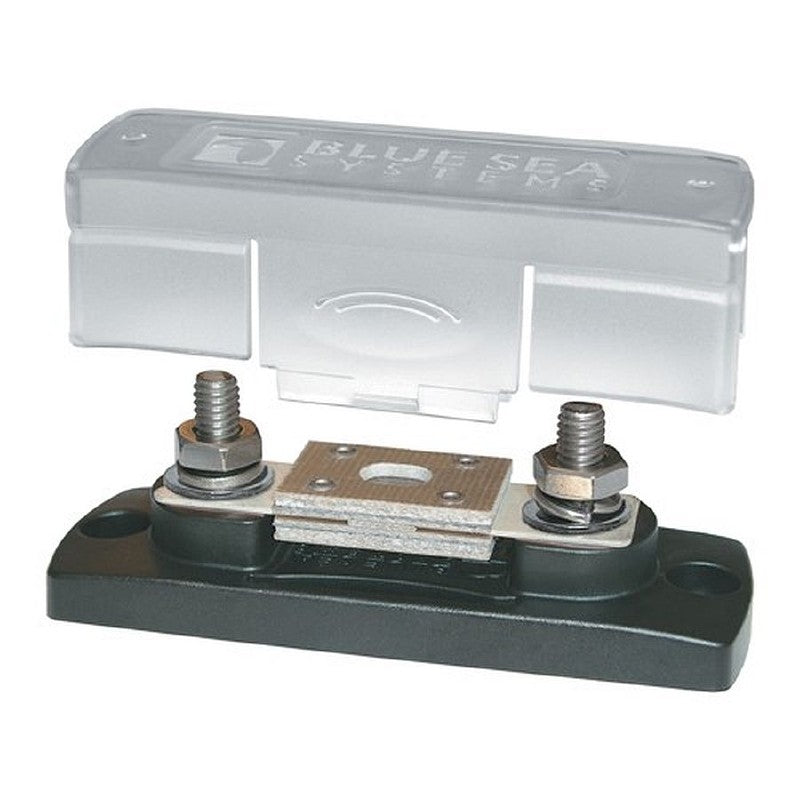

Blue Sea ANL Fuse Block 35 - 300 amp

Accepts 5 D16 inch M8 ring terminals
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
Insert moulded studs ensure secure fuse mounting
Stainless steel studs provide resistance to corrosion and high torque
UL 94 ~V0 base resists high heat
Swing out design allows fuse replacement without removing fasteners Specification:
Voltage Max Operating 32V DC
Amps Max Operating 300A DC
Terminal Stud Size M8
Mounting Holes M5 Screw
Cable Size Up to 2/0 AWG
Fuse Mounting Blocks Tin ~Plated Cooper
