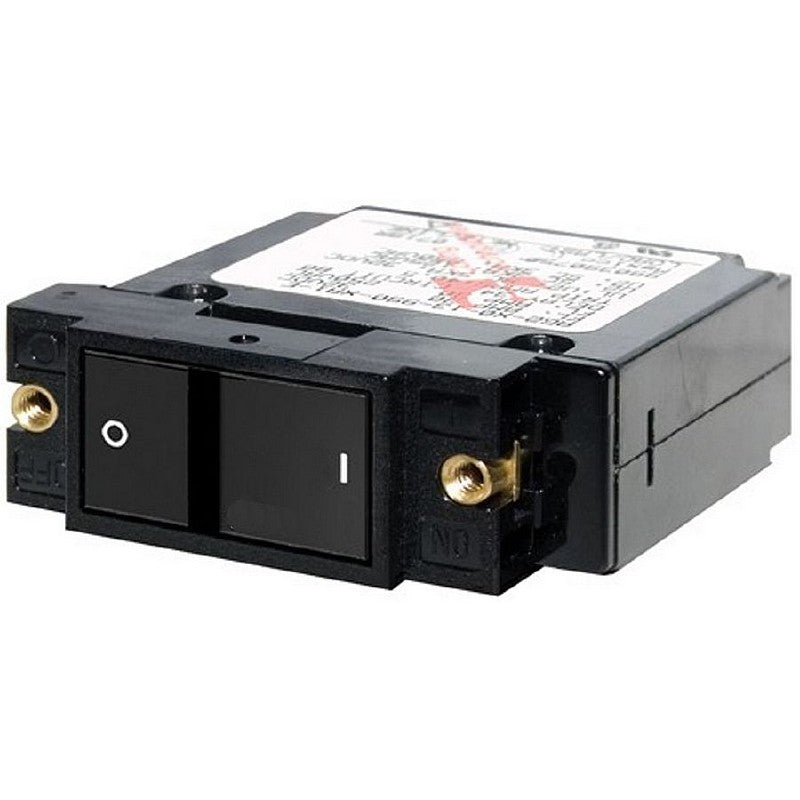

Blue Sea A Series Flat Circuit Breaker/ Switch 25A

A ~SERIES FLAT ROCKER CIRCUIT BREAKER AC/DC
Standard circuit breaker used on the 360 Panel System 1200 Series
Flat actuator resists accidental switching by being flush in the ON position
White actuator indicates OFF position
Single pole is frequently used for AC or DC Branch circuit protection
International ON and OFF symbols support vertical or horizontal mounting
Switching cycles: 10,000 @ rated A & V
Type: Magnetic hydraulic ~Trip free
Terminal screw: #10 ~32 Stainless Steel
Terminal screw torque: 14 ~15 in ~lb recommended load terminal is 30° angled
Mounting screw: #6 ~32 Stainless steel
Mounting screw torque: 6 ~8 in ~lb recommended
