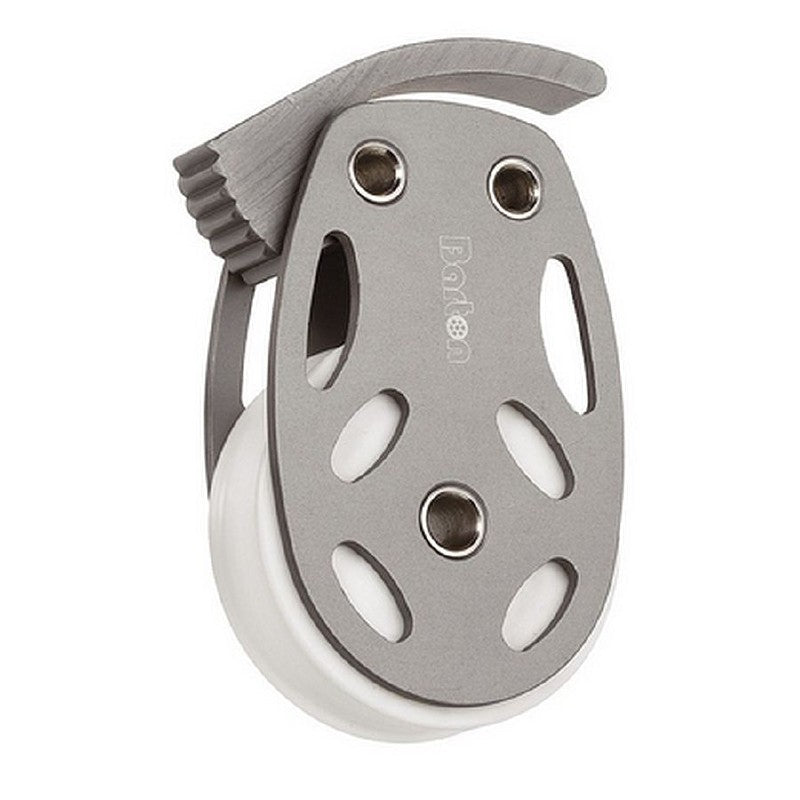

Barton Foot Block Cam 50mm

Featuring the same side plate and sheave construction as the high load blocks detailed above.Hollow stainless rivets allow for through ~bolt fastening, giving added strength. Through ~bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads. Fastening of the minimum diameter suggested should be used to gain full load capability. Ensure that suitable mounting pads are used under deck. Available in two sizes; specifications as per our high load foot block range. Suitable for a multitude of uses, including locking control lines on headsail furling gear. Sheave mm: 50 Sheave width mm: 15 Rope mm: 12 Break Load kg: 1000 SWL Kg: 500 Length mm: 84Weight g: 130
