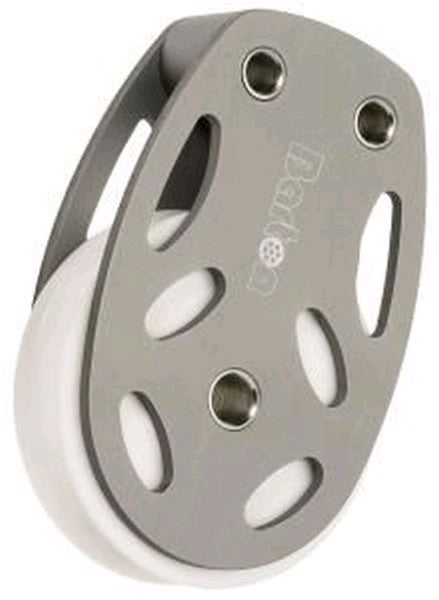

Barton Foot Block 85mm 82997
Manufactured from marine grade aluminium and 'Spectro' grey anodised for high UV stability and durability.
Sheaves are precision turned from solid 'Ertalyte' bar with a profile that is kind to modern ropes.
Hollow stainless steel rivets allow for the through bolt fastening giving added strength.
A further advantage is that these blocks can be easily stacked to achieve double block capabilities. NOTES: ~
Stacking blocks to achieve doubles will reduce working loads.
Fastenings of the minimum diameter suggested should be used to gain full load capability.
Ensure that suitable mounting pads are provided under deck. Sheave Diameter ~ 85mm Sheave Width ~ 21mm Rope Diameter ~ 18mm Breaking Load ~ 3000kg Safe Working Load ~ 1500kg Length ~ 132mm Weight ~ 551grams
Sheaves are precision turned from solid 'Ertalyte' bar with a profile that is kind to modern ropes.
Hollow stainless steel rivets allow for the through bolt fastening giving added strength.
A further advantage is that these blocks can be easily stacked to achieve double block capabilities. NOTES: ~
Stacking blocks to achieve doubles will reduce working loads.
Fastenings of the minimum diameter suggested should be used to gain full load capability.
Ensure that suitable mounting pads are provided under deck. Sheave Diameter ~ 85mm Sheave Width ~ 21mm Rope Diameter ~ 18mm Breaking Load ~ 3000kg Safe Working Load ~ 1500kg Length ~ 132mm Weight ~ 551grams
Barton Foot Block 85mm 82997
Our price£104.33
RRP£122.74
