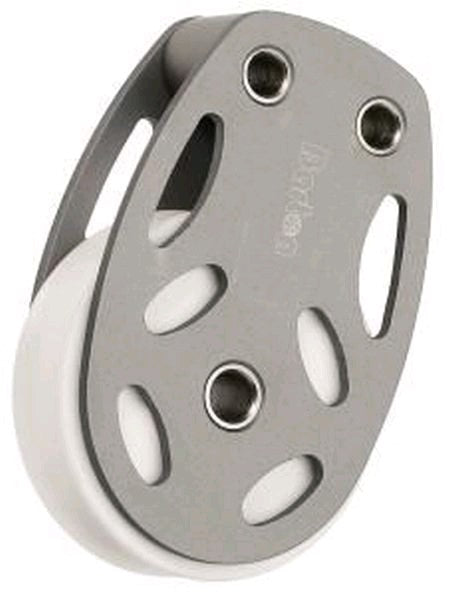

Barton Foot Block 65mm 82996
Manufactured from marine grade aluminium and 'Spectro' grey anodised for high UV stability and durability.
Sheaves are precision turned from solid 'Ertalyte' bar with a profile that is kind to modern ropes.
Hollow stainless steel rivets allow for the through bolt fastening giving added strength.
A further advantage is that these blocks can be easily stacked to achieve double block capabilities. NOTES: ~
Stacking blocks to achieve doubles will reduce working loads.
Fastenings of the minimum diameter suggested should be used to gain full load capability.
Ensure that suitable mounting pads are provided under deck. Sheave Diameter ~ 65mm Sheave Width ~ 18mm Rope Diameter ~ 16mm Breaking Load ~ 1600kg Safe Working Load ~ 800kg Length ~ 100mm Weight ~ 267grams
Sheaves are precision turned from solid 'Ertalyte' bar with a profile that is kind to modern ropes.
Hollow stainless steel rivets allow for the through bolt fastening giving added strength.
A further advantage is that these blocks can be easily stacked to achieve double block capabilities. NOTES: ~
Stacking blocks to achieve doubles will reduce working loads.
Fastenings of the minimum diameter suggested should be used to gain full load capability.
Ensure that suitable mounting pads are provided under deck. Sheave Diameter ~ 65mm Sheave Width ~ 18mm Rope Diameter ~ 16mm Breaking Load ~ 1600kg Safe Working Load ~ 800kg Length ~ 100mm Weight ~ 267grams
Barton Foot Block 65mm 82996
Our price£84.25
RRP£99.12
