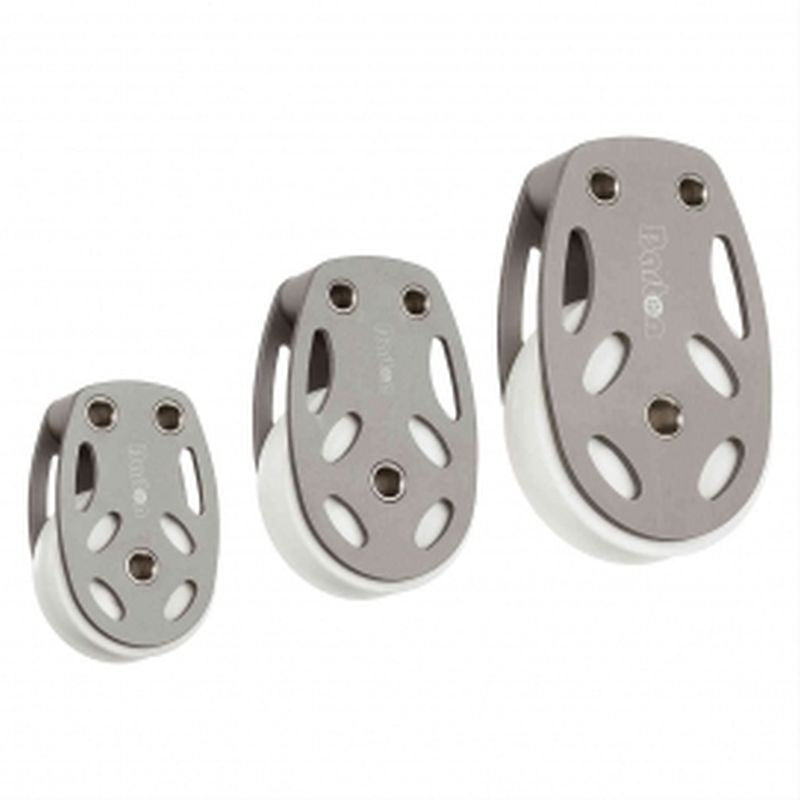

Barton Foot Block 50mm 82995

Featuring the same side plate and sheave construction as the high load blocks detailed above.Hollow stainless rivets allow for through ~bolt fastening, giving added strength. Through ~bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note; stacking blocks will reduce working loads. Fastening of the minimum diameter suggested should be used to gain full load capability. Ensure that suitable mounting pads are used under deck. Sheavediameter mm: 50Sheave width mm: 15Rope diameter 12mmBreak Load kg: 1000SWL kg 500Length mm: 79Weight 114g
