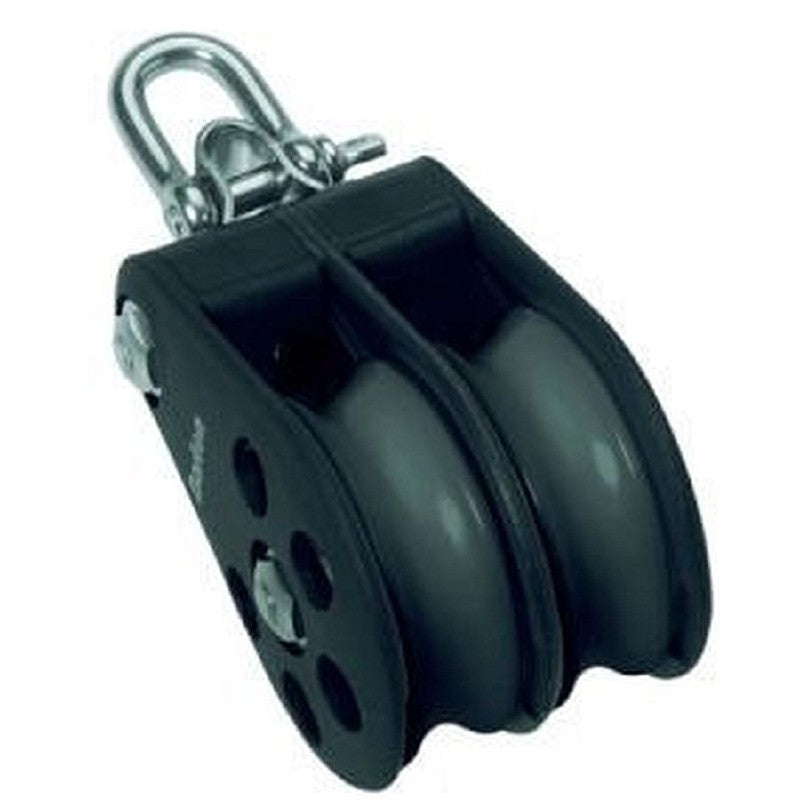

Barton Block Size 7 Ball Bearing Double Reverse Shackle - N17220
This range of high load cruiser blocks are of a rugged construction featuring high quality injection moulded side plates with all load carrying components from 316 stainless steel. Side plates are through bolted and riveted for added strength and security. This good looking and versatile range is designed for use on larger cruising and racing yachts.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Ball Bearing Block ~ With Barton's unique super low friction Ball Race System featuring Acetal Sheaves with Delrin ball bearings running on a large diameter centre boss. This allows us to fit more load bearing balls which ensure extremely low friction performance even under higher loads.
Reverse Shackle ~ Removable shackle can be set in line or at 90° to the sheave.
Specification Metric (Imperial) Sheave Size: Single ~ Fiddle 70 x 20 mm ~ 44 or 70 x 20 mm (2 3/4 x 3/4" ~ 1 3/4 or 2 3/4 x 3/4") Maximum Rope Diameter 16 mm Breaking Load 2500 kg 5500 lb Safe Working Load 1250 kg 2750 lb Maximum Rolling Load 875 kg ~ Length 160 mm ~ Weight 448 g ~
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Ball Bearing Block ~ With Barton's unique super low friction Ball Race System featuring Acetal Sheaves with Delrin ball bearings running on a large diameter centre boss. This allows us to fit more load bearing balls which ensure extremely low friction performance even under higher loads.
Reverse Shackle ~ Removable shackle can be set in line or at 90° to the sheave.
Specification Metric (Imperial) Sheave Size: Single ~ Fiddle 70 x 20 mm ~ 44 or 70 x 20 mm (2 3/4 x 3/4" ~ 1 3/4 or 2 3/4 x 3/4") Maximum Rope Diameter 16 mm Breaking Load 2500 kg 5500 lb Safe Working Load 1250 kg 2750 lb Maximum Rolling Load 875 kg ~ Length 160 mm ~ Weight 448 g ~
Barton Block Size 7 Ball Bearing Double Reverse Shackle - N17220
Our price£72.89
RRP£85.75
