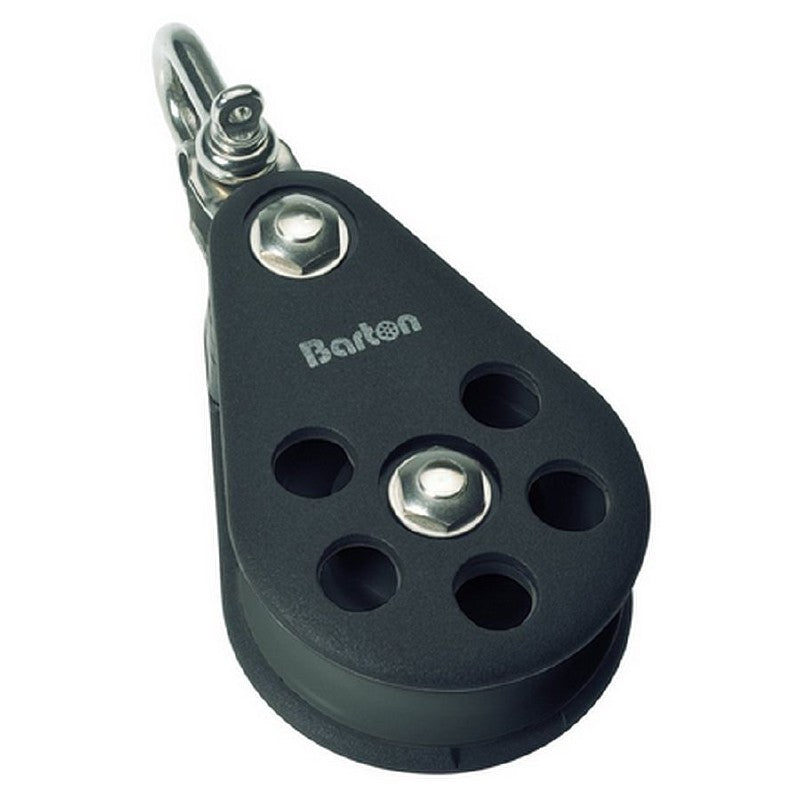

Barton Block Size 6 Ball Bearing Single Reverse Shackle - N16120
This range of high load cruiser blocks are of a rugged construction featuring high quality injection moulded side plates with all load carrying components from 316 stainless steel. Side plates are through bolted and riveted for added strength and security. This good looking and versatile range is designed for use on larger cruising and racing yachts.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Ball Bearing Block ~ With Barton's unique super low friction Ball Race System featuring Acetal Sheaves with Delrin ball bearings running on a large diameter centre boss. This allows us to fit more load bearing balls which ensure extremely low friction performance even under higher loads.
Reverse Shackle ~ Removable shackle can be set in line or at 90° to the sheave. Specification Metric (Imperial) Sheave Size: Single ~ Fiddle 63 x 17 mm ~ 44 or 70 x 17 mm (2 1/2 x 5/8 ~ 1 3/4 or 2 3/4 x 5/8) Maximum Rope Diameter 12 mm 7/16 Breaking Load 2000 kg 4400 lb Safe Working Load 1000 kg 2200 lb Maximum Rolling Load 700 kg ~ Length 140 mm ~ Weight 197 g ~
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Ball Bearing Block ~ With Barton's unique super low friction Ball Race System featuring Acetal Sheaves with Delrin ball bearings running on a large diameter centre boss. This allows us to fit more load bearing balls which ensure extremely low friction performance even under higher loads.
Reverse Shackle ~ Removable shackle can be set in line or at 90° to the sheave. Specification Metric (Imperial) Sheave Size: Single ~ Fiddle 63 x 17 mm ~ 44 or 70 x 17 mm (2 1/2 x 5/8 ~ 1 3/4 or 2 3/4 x 5/8) Maximum Rope Diameter 12 mm 7/16 Breaking Load 2000 kg 4400 lb Safe Working Load 1000 kg 2200 lb Maximum Rolling Load 700 kg ~ Length 140 mm ~ Weight 197 g ~
Barton Block Size 6 Ball Bearing Single Reverse Shackle - N16120
Our price£43.49
RRP£51.16
