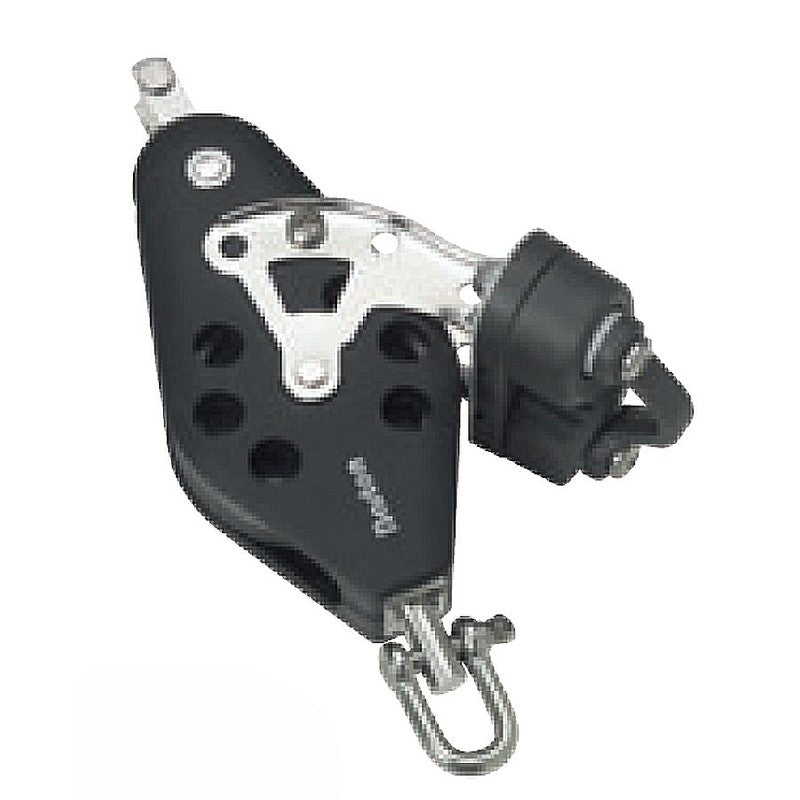

Barton Block Size 5 Ball Bearing Fiddle Swivel Becket and Cam N15631

Barton Block Size 5 Ball Bearing Fiddle Swivel Becket and Cam 15631 This range of high load cruiser blocks are of a rugged construction featuring high quality injection moulded side plates with all load carrying components from 316 stainless steel. Side plates are through bolted and riveted for added strength and security. This good looking and versatile range is designed for use on larger cruising and racing yachts. A comprehensive range of camcleat, fiddle and fiddle and camcleat versions are available. Ball Bearing Block ~ With Barton's unique super low friction Ball Race System featuring Acetal Sheaves with Delrin ball bearings running on a large diameter centre boss. This allows us to fit more load bearing balls which ensure extremely low friction performance even under higher loads. Swivel ~ Solid stainless steel swivel eye through a solid trunion assembly through bolted to the block is capable of operation under the highest loads. A forged stainless steel screw pin shackle is also fitted. Specification Sheave Size: Single ~ Fiddle 54 x 17 mm ~ 38 or 64 x 17 mm Maximum Rope Diameter 12 mmBreaking Load 1500 kg Safe Working Load 750 kgMaximum Rolling Load 525 kgLength 209 mmWeight 449 g
