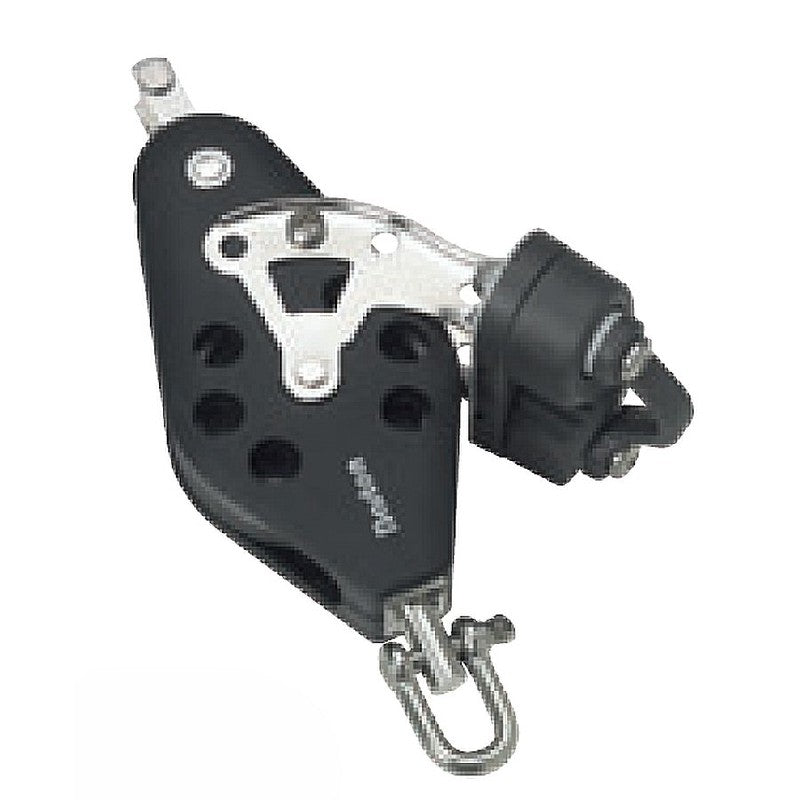

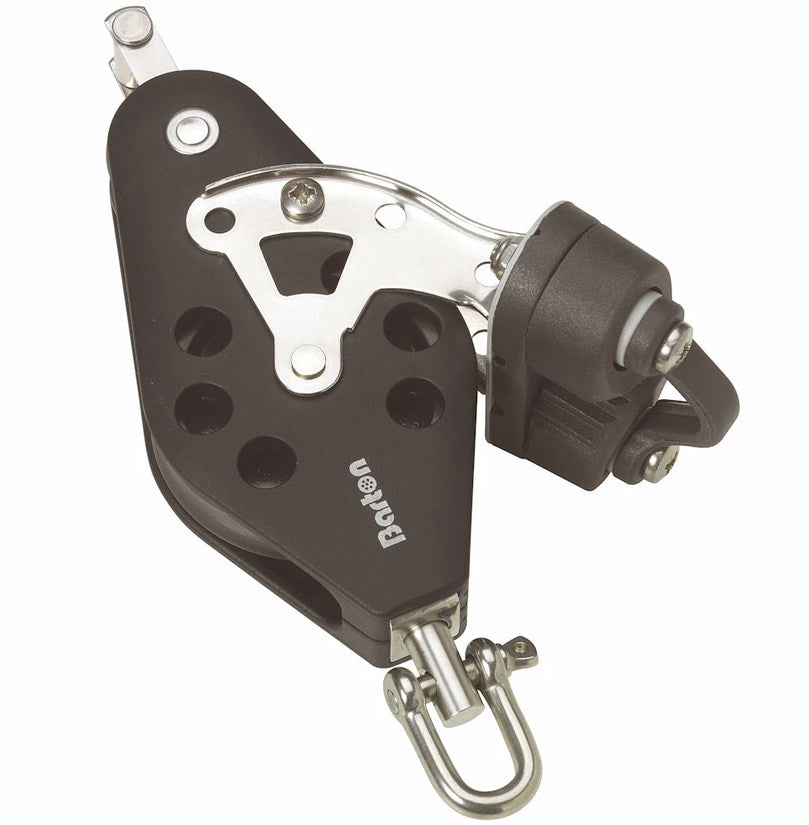

Barton Block Size 3 Plain Bearing Fiddle Swivel Becket and Cam N03631
A strong lightweight range of blocks suitable for use on dinghies, dayboats and light cruising yachts. Ideal for mainsheets, vang tackles, lead blocks or whatever powerful and compact purchase tackle is required.
A comprehensive range of camcleat, fiddle and fiddle and camcleat versions are available.
Plain Bearing Block ~ Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
Swivel ~ Fully swivelling head with removable shackle.
Camcleat Blocks ~ Fitted with Kevlar K Cams.
Cam arms are fully adjustable by moving the locking clevis pin to achieve the correct cleating angle.
This range of blocks used in conjunction with relevant fiddles are particularly useful for use as mainsheet, vang tackles or powerful downhauls on dinghies, dayboats or light cruising yachts.
Specification
| Weight | 243 g |
|---|---|
| Dimensions | 175 × 92 × 68 mm |
| Size |
3 (45MM) |
| Block Type |
Snap Shackle + Becket + Cam |
| No. of Sheaves |
Single |
| Bearing Type |
Plain |
| Sheave Size |
45mm x 13mm (1 3/4" x 35/64") |
| Max rope diameter |
10mm (3/8") |
| SWL |
400kg (881lbs) |
| Break load |
800kg (1763lbs) |
| Max rolling load (ball bearing blocks) |
270kg (595lbs) |
