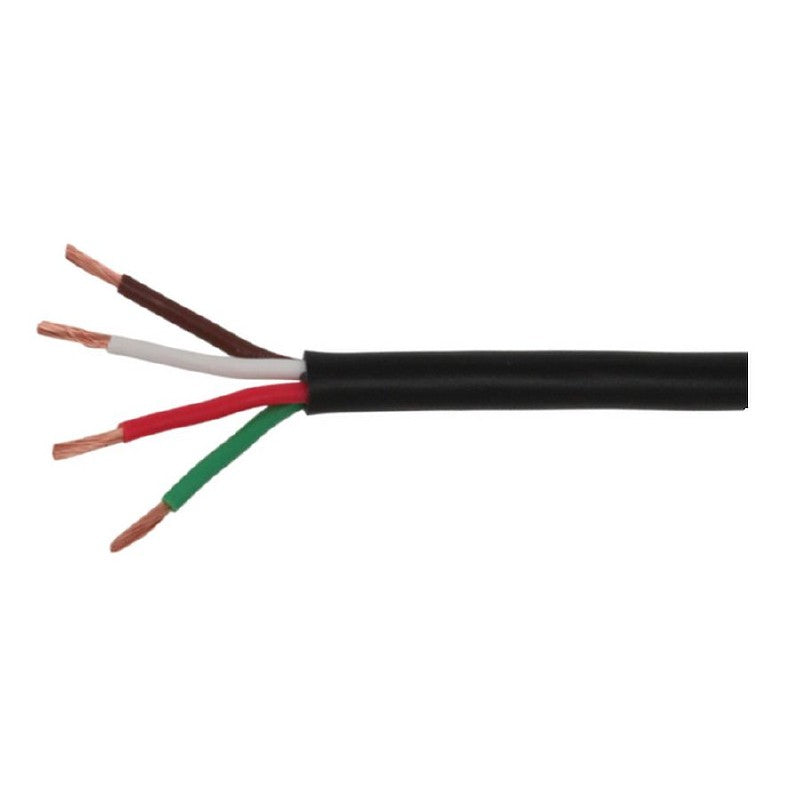

Aquafax 4 Core Cable 32/0.20 1.0mm Black

Manufactured to ISO 6722:2006 Class B Plain copper conductors PVC sheathed 70°C

Maximum Load Description 12V = 198 Watts, 24V = 396 Watts
Style Thin Wall Cable
Cable Conductor Plain Copper
Cable Cores 4 Core
Cable Inner Colours Red, Black, Green & White
Cable Insulation Hard Grade PVC
Conductor Specifications 4 x 32/0.20 mm
Cable Conductor Cross Section Description 1.0mm²
Resistance Per Metre at 20degC 0.0185 ohms
Shape Description Round
Colour Black
Voltage Description Max. 60V suitable for 12V DC and 24V DC systems, excluding Hi Tension circuits
Amps Description Nominal Current Rating: 16.5A
Approvals Cores manufactured to ISO 6722 ~1:2011 Class B, Plain copper conductors to BS EN 60228:2005
Temperature Range ~40°C to +105°C with excursions to 120°C max
Diameter Description Max Outside Diameter: 5.8mm
Country of Origin United Kingdom
