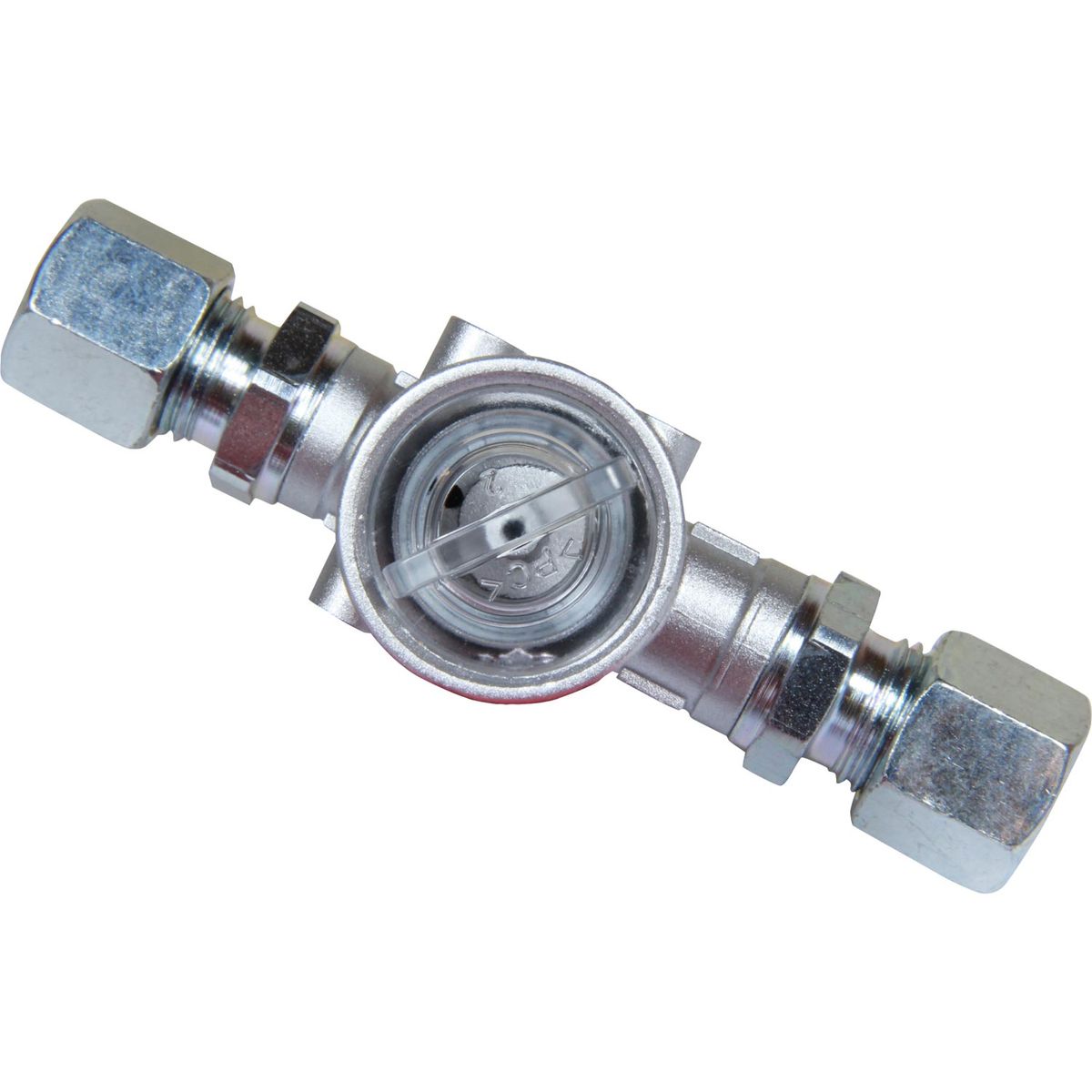

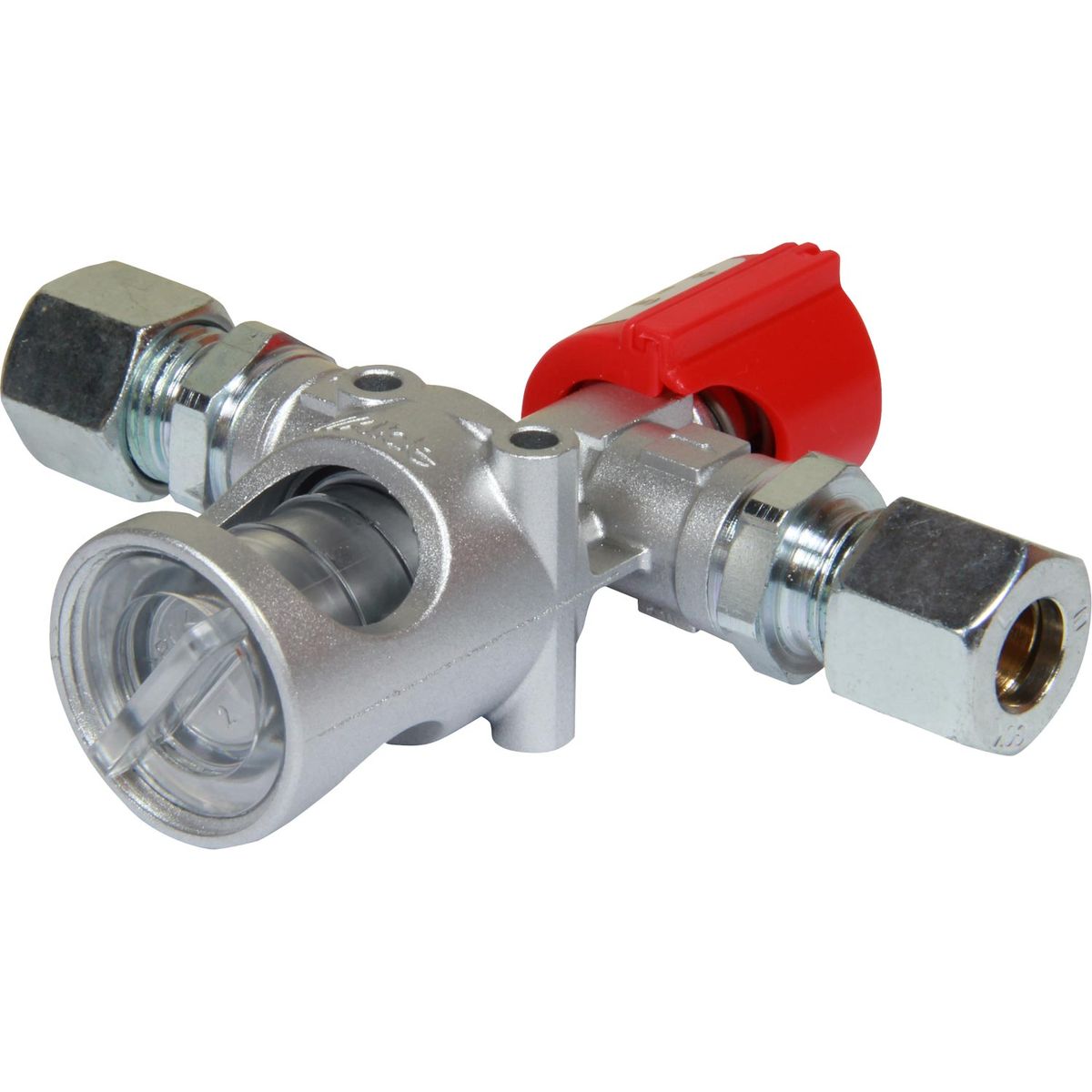

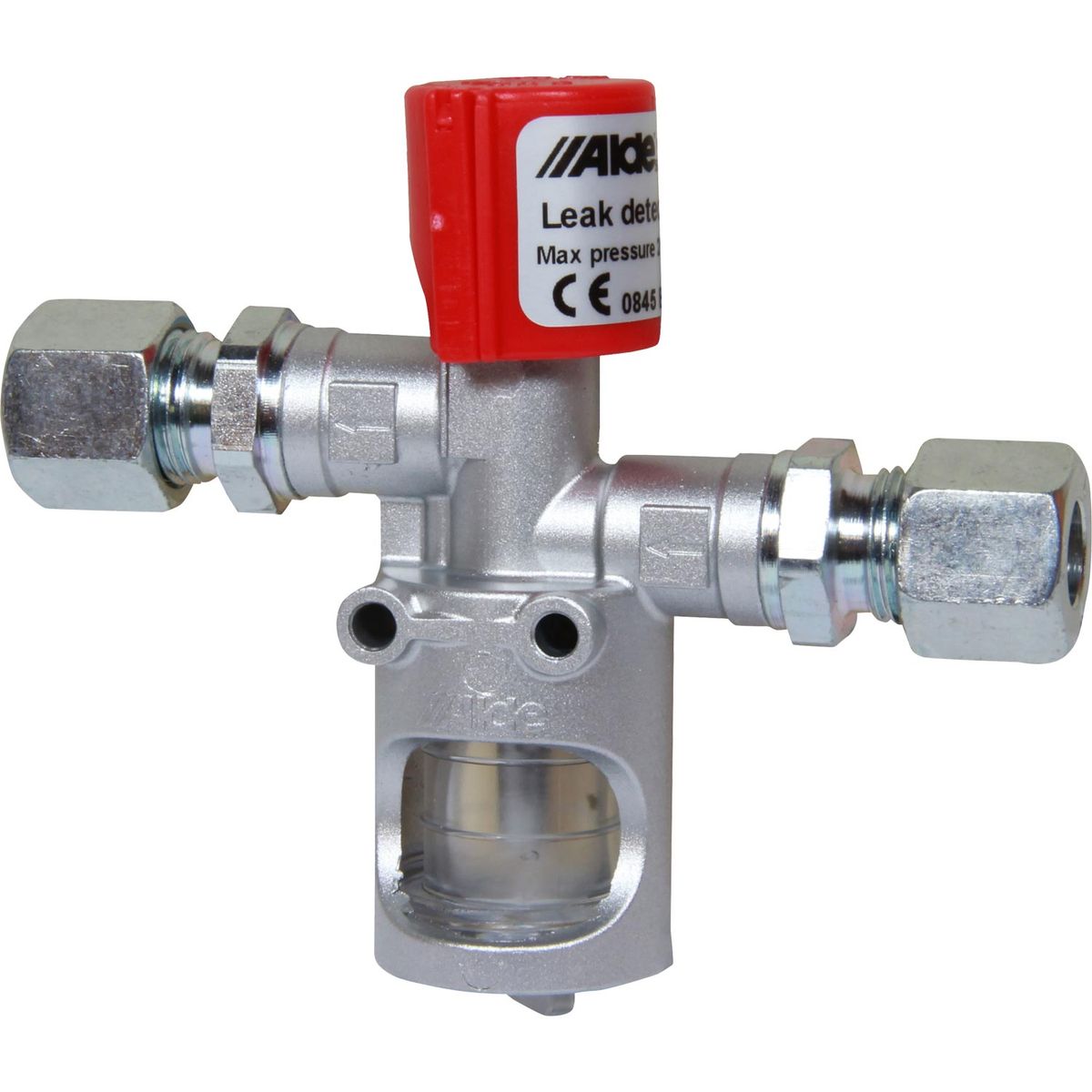

Alde Bubble Gas Leak Detector 10mm Copper

This leak detector is designed to be connected close to the outlet side of the gas regulator. It then provides an instant visible check for leaks. Bubbles in the sightings chamber indicate a leak downstream of the bubble tester. Supplied complete with fluid. It may be used in boats, caravans and other applications. The Boat Safety Scheme states that "an approved bubble tester is highly recommended". The bubble tester is approved under the BSS.

Technical Specification:

Dimensions (HxWxD): 90 x 60 x 30mm

Max. working pressure: 2 bar (29.4psi)

Capacity: 12kW

Pipe connections: 8mm/10mm compression inlet & outlet

Capacity Description 12kW
Compression Fitting Size 10mm
Thread Connection Compression
Thread Gender Male
Pressure Rating Max Operating: 29.4 PSI (2 Bar)
Brand Alde
Approvals Boat Safety Scheme Approved
Height Description 90mm (3.54")
Width 60mm
Depth 30mm

Download the user manual here
