Actisense QNB-1-PMW NMEA 2000 Quick Network Block, Breakout Box - 6 screw micro female drops

Fault ~free, NMEA 2000 backbone connections.

The Actisense QNB ~1 and QNB ~1 ~PMW provide flexible alternatives to multiple connectors, reducing the cost of an NMEA 2000 cable installation. Both units are perfectly suited to areas of high instrument density, such as engine bays, as six network drops can be connected.

The QNB ~1 can limit the current to the safe level for the network. The LEDs provide information for the installer during set up and to indicate the presence of data, power status, power reversal and to show whether the fuses are intact.

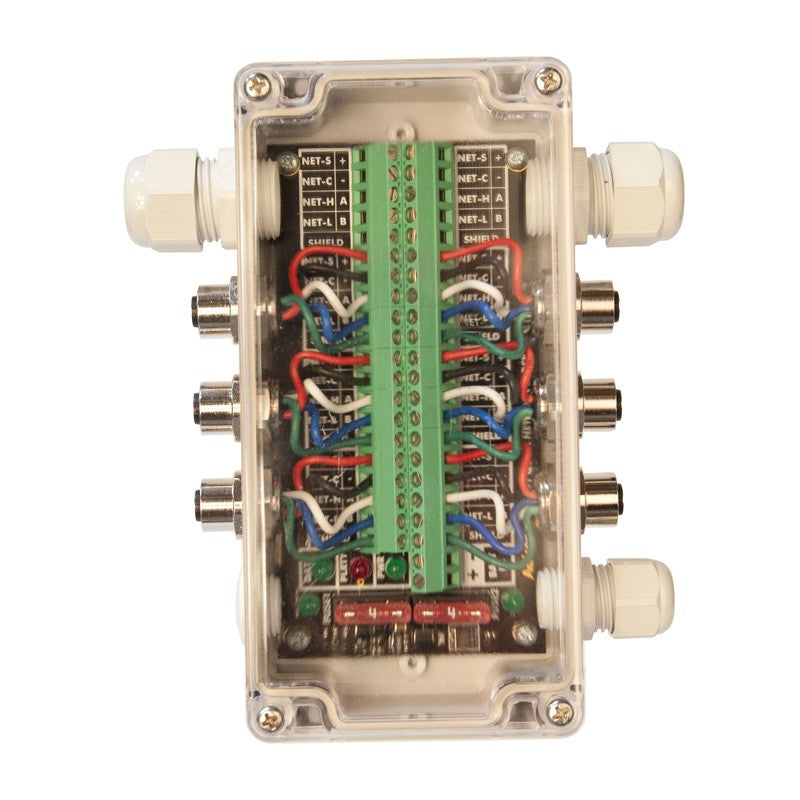

The QNB ~1 ~PMW version is fitted with six standard NMEA 2000 M12 micro ~fit female connectors which allow plug and play connections for quick and easy installation. NMEA 2000 barrier strip connections Backbone connections for both Mini and Micro cable Four power LEDs and one data LED Backbone connections for both Mini and Micro cable Four power LEDs and one data LED Six NMEA 2000 M12 connectors on the QNB ~1 ~PMW Simple installation on Mini and Micro networks Power hook up is protected
