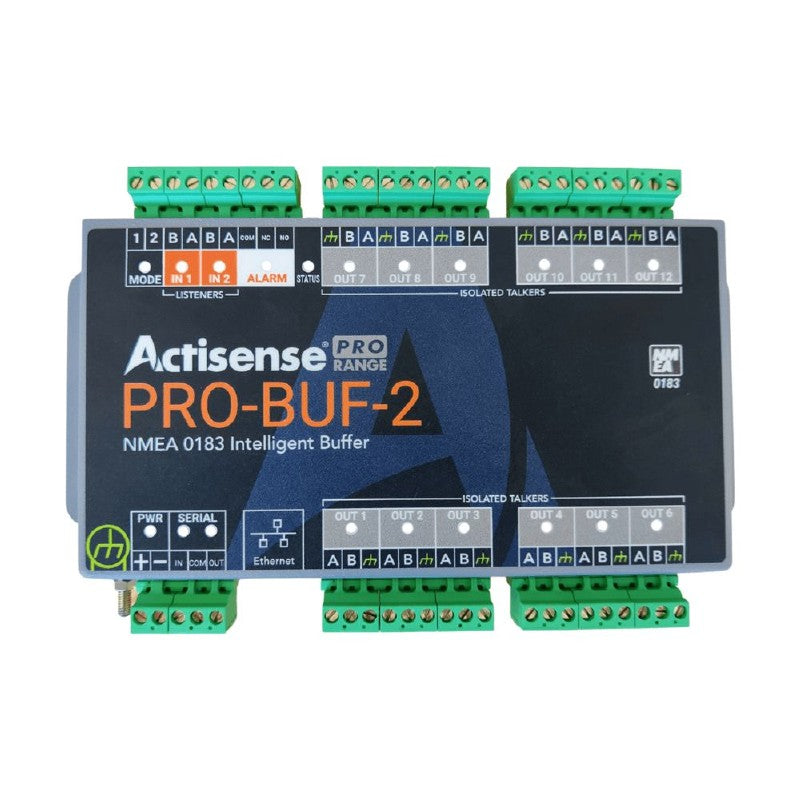

Actisense PRO-BUF-2 Professional NMEA 0183 Buffer

The PRO ~BUF ~2 is rugged, with a stainless steel housing, and provides isolation on all inputs
and outputs. With two NMEA 0183 inputs, twelve NMEA 0183 outputs, a bi ~directional serial
port and an Ethernet port, the PRO ~BUF ~2 is a perfect solution for larger leisure vessels,
commercial shipping and is a great addition for systems that require type ~approved devices.

2 Opto ~Isolated inputs
12 ISO ~Drive NMEA 0183 outputs
Ethernet Port
Flexible operating modes
Automatic Baud Rate matching on inputs
Alarm output options
Web based configuration tool
Diagnostic LEDs
Advanced Data Filtering and Routing
2 virtual Autoswitch modules
Data statistics and load indication via web tool
Designed for 12 / 24 Volt supply
Future proofing with easily upgradable firmware
2 ~part pluggable connector system
Stainless Steel Housing with DIN rail mount option
Type Approved

The Intelligent NMEA 0183 Buffer manually configurable basic modes of operation include
variations of buffer modes, intelligent auto ~switch, and combine modes.
For all other configurations, leaving the mode inputs floating selects the User Configuration
Mode. The web ~based configuration tool allows full customisation of the PRO ~BUF ~2, and is
compatible across all popular Operating Systems. Using the web ~based configuration tool allows
for fine ~tuning of the data available on each output.
To make installation quick and simple the PROBUF ~2 features 2 ~part pluggable connectors that allow
the use of screw terminals, and a professional DIN Rail mounting system ~ DIN Rail not included.
The device can also be mounted directly to the bulkhead.
Helpful LEDs indicate power, data in, data out, and the alarm status to aid diagnostics.
Data statistics and load indication via the web tool provide a real ~time view of data.
