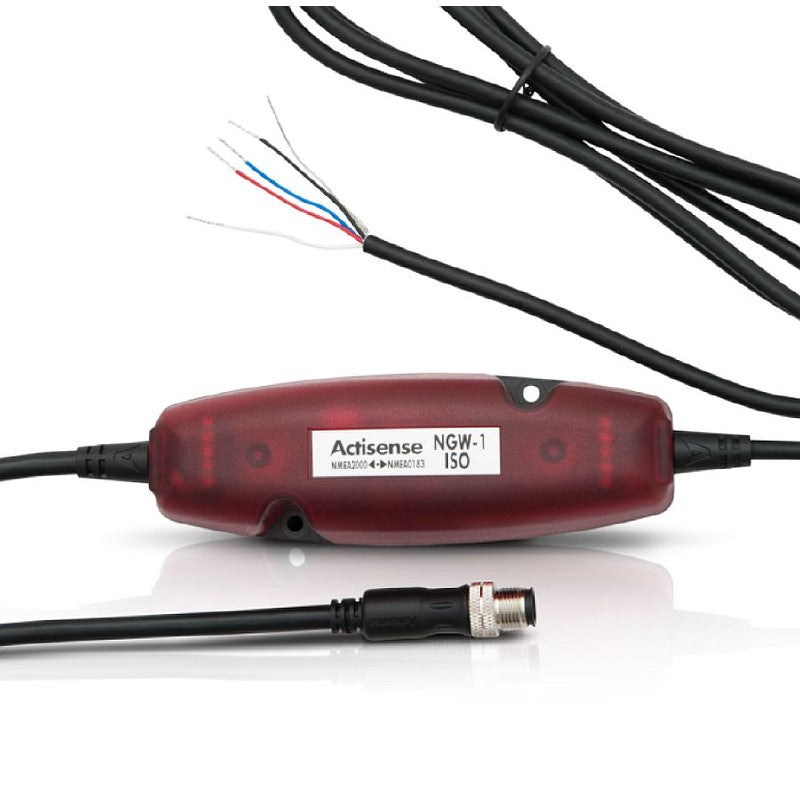

Actisense NGW-1-AIS NMEA 2000 Gateway - Preconfigured for AIS Operation

Hook up to NMEA 2000 whilst keeping currently installed NMEA 0183 devices. The NGW ~1 range provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice ~versa.
NMEA 0183 to NMEA 2000 Gateway ~ Bare wires to NMEA 2000 Micro Conector ~ Unit is preconfigured for AIS

Fully isolated NMEA 0183 incorporating ISO ~Drive™ technology
Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
Supports Fast Heading at 10Hz
Up to 230,400 baud data transfer rate
Integrated 1.5m drop cable
Diagnostic receive LEDs

Fully NMEA 2000 Certified
The Actisense NMEA Reader software utility allows the NGW ~1 user to view and understand in detail the translated NMEA 0183 sentences output by an NGW ~1 directly.

BENEFITS
Upgrade NMEA 0183 equipment to NMEA 2000
Allow NMEA 0183 devices to receive vital NMEA 2000 data
Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
Reliable, renowned bi ~directional conversion engine
Supports a wide range of conversions including AIS
Easily configurable using Actisense Toolkit
