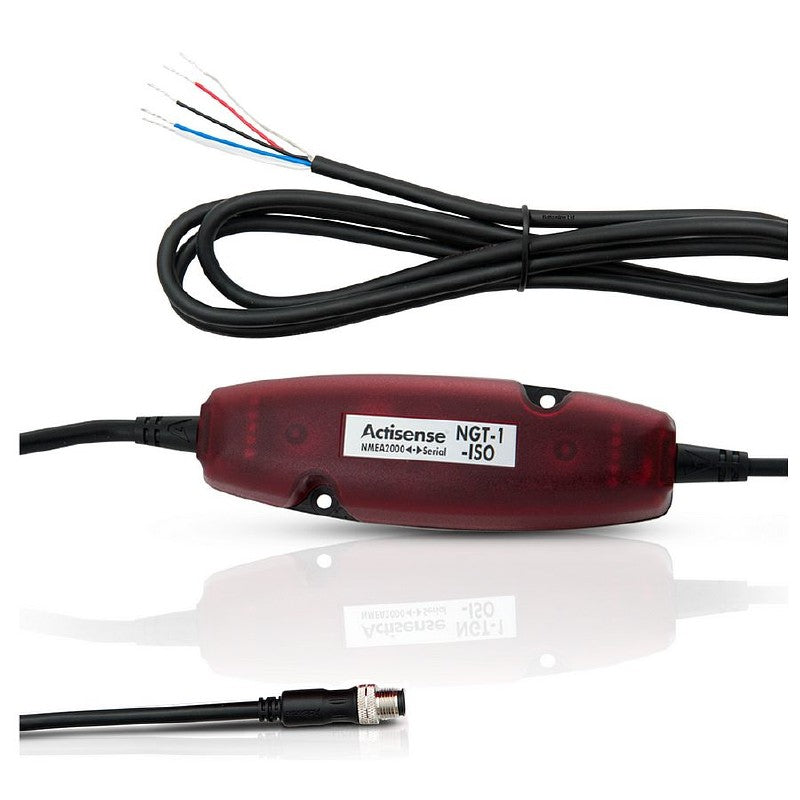

Actisense NGT-1 NMEA 2000 PC Gateway-ISO
NGT ~1 ~ISO is a more specialist option Opto isolated input and ISO ~Drive output for a direct PC bi directional connection.
Interface your PC to the NMEA 2000 bus with a functional firewall gateway.
The Actisense NGT 1 is the only intelligent NMEA 2000 gateway available to precisely transfer messages to and from the NMEA 2000 bus.
The diagnostic NMEA Reader software allows viewing of NMEA 2000 messages with configuration options, enabling the set ~up of all Actisense products on the NMEA 2000 bus.
The firewall feature enforces the NMEA 2000 bus rules, so software manufacturers can create compliant software at a fraction of the direct certification costs.
The supporting Actisense Software Development Kit SDK helps to reduce the required development time.
With Third Party Gateway status, leading chart plotter software can be certified to work with the NGT 1.
Features
Provides a rule enforcing firewall between the PC and NMEA 2000 bus
Configure and flash ~update Actisense products on the NMEA 2000 bus
Use with NMEA Reader to help diagnose network problems
Sends and receives pure NMEA 2000 data
Power Supply ISO Variant Supply Voltage NMEA 2000 Port 9.5 to 35V DC
Supply Current NMEA 2000 Port 35mA @ 12V DC, Max 50mA
Load Equivalent Number LEN 1
ISO Port NGT 1 ISO Compatibility Full RS232 and RS422 compatible.
Galvanic Isolation 2500V input to ground, 1500V output to ground using ISO ~Drive Speed/Baud Rate 4800 to 115200 Baud Output Voltage Drive >= 2.1V differential into 100Ω
Output Current Drive 20mA max. Output Protection Short circuit and ESD
Input Voltage Tolerance ~15V to +15V continuous ~35V to +35V short term < 1 second Input Protection Current limited and overdrive protection to 40VDC Connectivity 5mm stripped and tinned wire Cable Length 1.5m
Interface your PC to the NMEA 2000 bus with a functional firewall gateway.
The Actisense NGT 1 is the only intelligent NMEA 2000 gateway available to precisely transfer messages to and from the NMEA 2000 bus.
The diagnostic NMEA Reader software allows viewing of NMEA 2000 messages with configuration options, enabling the set ~up of all Actisense products on the NMEA 2000 bus.
The firewall feature enforces the NMEA 2000 bus rules, so software manufacturers can create compliant software at a fraction of the direct certification costs.
The supporting Actisense Software Development Kit SDK helps to reduce the required development time.
With Third Party Gateway status, leading chart plotter software can be certified to work with the NGT 1.
Features
Provides a rule enforcing firewall between the PC and NMEA 2000 bus
Configure and flash ~update Actisense products on the NMEA 2000 bus
Use with NMEA Reader to help diagnose network problems
Sends and receives pure NMEA 2000 data
Power Supply ISO Variant Supply Voltage NMEA 2000 Port 9.5 to 35V DC
Supply Current NMEA 2000 Port 35mA @ 12V DC, Max 50mA
Load Equivalent Number LEN 1
ISO Port NGT 1 ISO Compatibility Full RS232 and RS422 compatible.
Galvanic Isolation 2500V input to ground, 1500V output to ground using ISO ~Drive Speed/Baud Rate 4800 to 115200 Baud Output Voltage Drive >= 2.1V differential into 100Ω
Output Current Drive 20mA max. Output Protection Short circuit and ESD
Input Voltage Tolerance ~15V to +15V continuous ~35V to +35V short term < 1 second Input Protection Current limited and overdrive protection to 40VDC Connectivity 5mm stripped and tinned wire Cable Length 1.5m
Actisense NGT-1 NMEA 2000 PC Gateway-ISO
Our price£152.83
RRP£169.81
