JCS P-Clips For Pipes Cables Hoses Stainless Steel 16mm - Pack of 25
JCS P Clips Stainless Steel Marine quality Stainless Steel clips with a TPE rubber liner. TPE rubber liner absorbs vibration stops water seeping into the clamped area and prevents damage to the pipe or cable. Special strengthening rib keeps clips flush with the surface. TPE liner is UV and ozone resistant Elongated upper hole to help line up the bolt when fitting Fixing nuts and bolts not supplied
Material Specification: Clip: BS304 ~ EN1.4301 ~ 18/8 S/SLiner: TPE rubber Black ~ 65 irhd hardness
Service Temp: ~30 degrees C to + 50 degrees
Size relates to pipe outside diameter required e.g 8mm pipe would require size 8mm clips

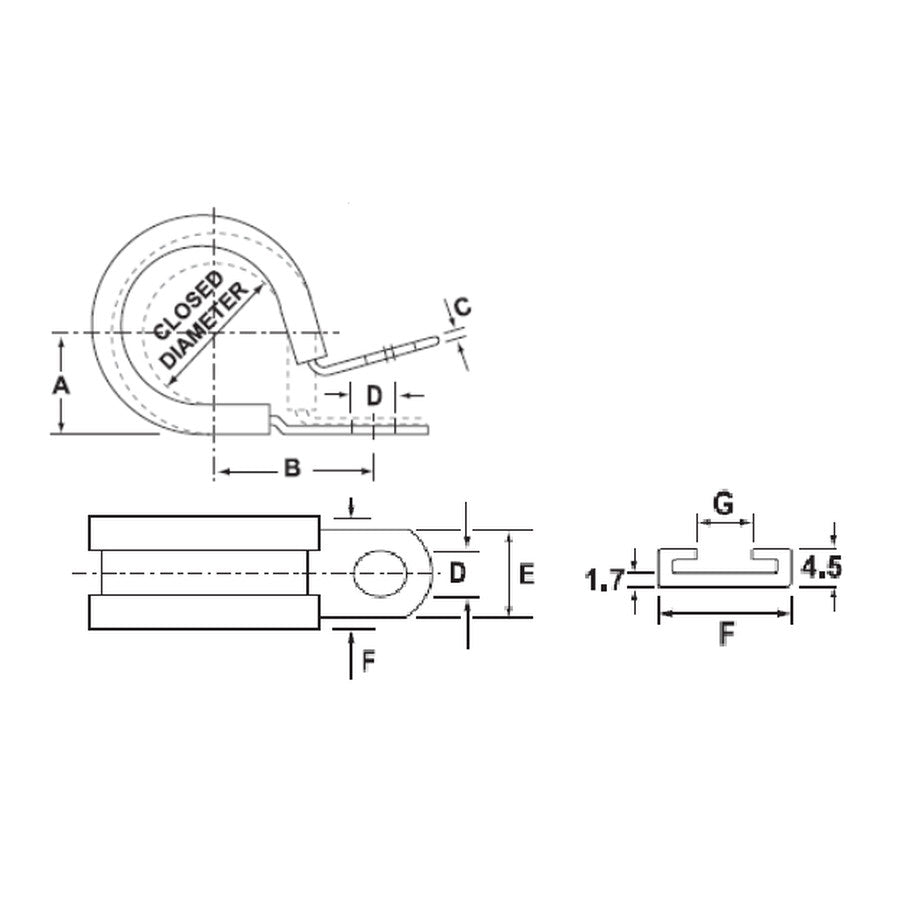

Dimensions in mm:
Size: 5mm A=6 B=15 C=0.7 D=6.6 E=12.6 F=16 G=7
Size: 6mm A=7 B=16 C=0.7 D=6.6 E=12.6 F=16 G=7
Size: 8mm A=8 B=17 C=0.7 D=6.6 E=12.6 F=16 G=7
Size: 9mm A=8 B=17 C=0.7 D=6.6 E=12.6 F=16 G=7
Size: 10mm A=9 B=18 C=0.7 D=6.6 E=12.6 F=16 G=7
Size: 12mm A=10 B=20 C=0.7 D=6.6 E=12.6 F=16 G=7
Size: 13mm A=10 B=20 C=0.9 D=6.6 E=12.6 F=16 G=7
Size: 16mm A=12 B=21 C=0.9 D=6.6 E=12.6 F=16 G=7
Size: 19mm A=13 B=23 C=0.9 D=6.6 E=12.6 F=16 G=7
