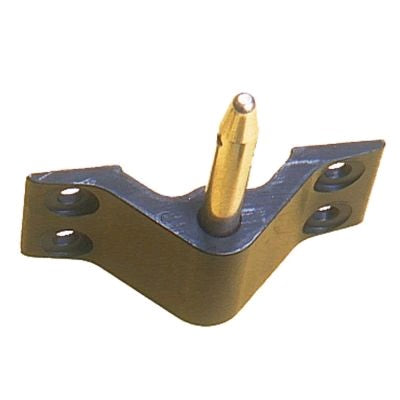

Seasure Top Transom Pintle 18-14

The 4 Hole transom mounted pintle is one of the most common and used transom fittings around. The fitting has 4 5mm countersunk fixing holes for attaching to the back of the boat. The pin is 8mm diameter and is made from 316 stainless steel and is made to fit snugly with our gudgeon ranges. The pintle pin has a cross hole drilled so that an r clip or split ring can be used to secure the rudder on to the transom fittings.

Fixing Holes Diameter 5mm
