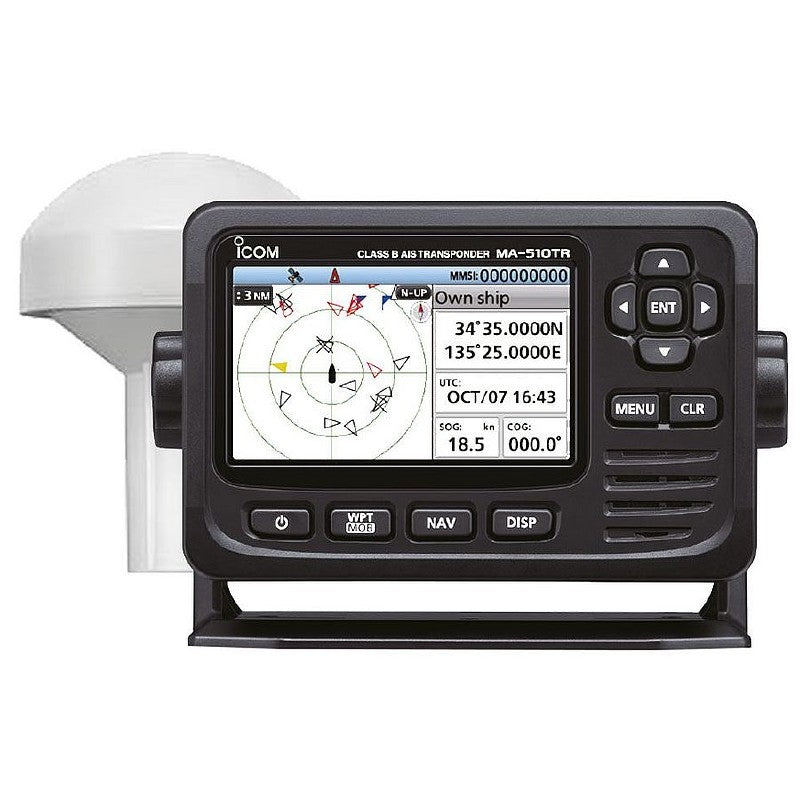

The MA-510TR is an all in one stand-alone unit that combines both AIS transponder and a sharp display in a compact design that features an attractive and easy to read the wide-angled colour screen, legible even in direct sunlight. The MA-510TR advanced AIS transponder boasts a whole host of important features including a navigation function that guides the operator to their destination, silent mode, USB-connectivity, man overboard navigation function and collision alarm function.
Standalone AIS Transponder
The MA-510TR is a compact standalone AIS transponder that can be installed in a convenient place near the chart table, in the wheelhouse, on the fly bridge or on a pedestal in the cockpit and would make an invaluable safety addition to small vessels, workboats or pleasure craft. The MA-510TR automatically receives information broadcast by other AIS-equipped vessel’ s and base stations, all while your own vessel’ s static and dynamic information is being transmitted. AIS signals may reach where radar cannot, showing AIS-equipped vessels that might otherwise be hidden, such as on the other side of an island, or behind a larger vessel. The MA-510TR increases your safety at sea.
4.3-inch-Wide Viewing Angle Colour TFT Display
The wide viewing, high-resolution 4.3-inch colour TFT display clearly shows your and other vessels’ positions. Dangerous vessels are shown in red and ships registered as your friends are shown in yellow. The day-mode display is readable in direct sunlight, and the night-mode display ensures good readability in the dark for further convenience.
AIS Target List and Details
The Target list screen shows all detected AIS equipped vessels and targets. The Danger list screen shows a list of vessels that are within six nautical miles of Closest Point of Approach CPA and sixty minutes of Time to Closest Point of Approach TCPA from your vessel. The Friend list screen displays the detected AIS targets that you set as friends. When you want to see target details, select the target with the cursor keys and push the ENT key.
Simplified Navigation Function
The Navigation function guides you to a specified waypoint or AIS target. You can assign a maximum of 100 favourite locations or points of interest. The Navigation function is simply started by just selecting a waypoint or an AIS target on the display.
The MA-510TR features a Target Filtering Function so if you have too many targets on screen you can find your desired target point by temporarily filtering out categories such as waypoints and friends.
Navigation to MOB Waypoint
The MA-510TR can assist you in finding a person who has fallen overboard. When the MOB button is pressed, the GPS automatically marks a waypoint at the current location allowing you to navigate to that MOB waypoint.
Individual DSC Call
You can transmit an individual DSC Call by merely selecting an AIS target and the voice channel on the MA-510TR*.
* A compatible Icom VHF radio IC-M605EURO, IC-M506/GE, IC-M424G/E, IC-M400BB/BBE or IC-M330GE is required.
Collision Alarm Function
When a vessel comes into the CPA or TCPA range, the vessel’ s icon blinks on the plotter display and a beep sound is heard. When connected to external audio equipment installed on the chart table or fly bridge, the collision alarm function will alert you even when you are away from the AIS transponder.
Silent Mode for Security and Privacy
Silent mode switches off the AIS transmitter for security and privacy. This function is useful when you do not want to reveal your fishing spots to other vessels. You can receive other vessel’ s AIS reports while the silent mode is ON.
NMEA 2000 and NMEA 0183 Connectivity
With the plug-and-play functionality of NMEA 2000, the 510 can connect to a NMEA 2000 network an external plotter, marine radar and VHF radio. Using NMEA 0183/-HS connectivity, the transponder can connect to a transceiver, plotter device, marine radar or GPS receiver.
AIS data can be output from a USB cable connector on the rear panel*.
* A third party application and connection cable are required.
Supplied GPS Antenna
A 66 channel parallel GPS receiver with SBAS function is supplied as standard with the Icom 510TR.
Compatible with both 12 V and 24 V power sources
Multi-lingual user interface English, French, Indonesian, Spanish and Vietnamese
Anchor watch function sounds an alarm when your vessel is drifting when anchored.
IPX7 waterproof protection up to 1 m depth of water for 30 minutes; except connectors
EAN no: 4909723148500
