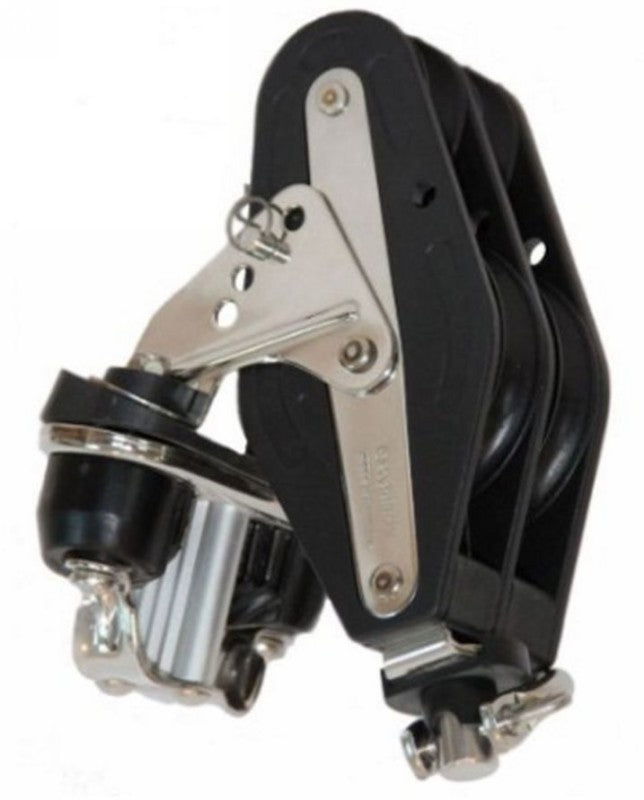

Easy Marine Easymatic 1 Double Violin Block 6:1 3:1 with Double Easy Servo Cleat 93102
Easymatic - a mainsheet system with two gears.
Thanks to the patented easy double servo cleat it is possible to make this revolutionary mainsheet system.
Easymatic is available in series 1 - boats up to approximately 10m - 33ft and in series 2 - boats up to approximately 13m 0 42ft.
The Easymatic system consists of an easy double cleat and a number of easy super blocks.
The bearings are the same as in the roller bearing blocks. An extra large bearing diameter allows more rollers and offers a larger load carrying surface with very little friction.
The Endless Main Sheet
By splicing the two rope ends of the main sheet you obtain the most effective easymatic system. The wear on the rope will be divided over the entire length and you will never be short of rope to ease through either cleat.
Splicing instructions are supplied with all easymatic blocks.
Easymatic 1 Systems
4:1 2:1 Blocks Required: 93101 or 93101-10 or 93101D and 93112C
6:1 3:1 Blocks Required: 93102 or 93102D and 93103
8:1 4:1 Blocks Required: 93104 and 93102-20
Breaking Load: 1000kg
Working Load: 500kg
Max Line: 8-10mm
Max Boat: 10.15m - 33ft
Sheave Diameter: 6038x14
